Create Production Fabric Files

Now that we have successfully deployed the staging fabric using Ansible we will use GitLab and a CI/CD Pipeline to deploy the production fabric and then any additional changes we need to make to the production Fabric will first be tested in our safe staging fabric before pushing them to the production fabric.

First we need to create the same variable files for the production fabric just like we did for the staging fabric.

Step 1 - Create Ansible Inventory File for NDFC Production Fabric

Like you did back in the NDFC Ansible section, create an inventory file for your production fabric. When this is used in the pipeline, it will be the inventory used with ansible-playbook -i. Since this file uses the same ndfc group name, your previously developed playbooks remain unchanged and can be reused.

touch ~/workspace/ndfclab/nac/hosts.prod.yml
cat << EOF > ~/workspace/ndfclab/nac/hosts.prod.yml
---
# Inventory Information For Prod Fabric and External Fabric
ndfc:
  hosts:
    fabric-prod:
      ansible_host: 10.15.0.26
    fabric-external-prod:
      ansible_host: 10.15.0.26
EOF

Step 2 - Add Prod Data Model Files

Prod data model files:

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/fabric.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/fabric.nac.yml
---

vxlan:
  fabric:
    name: fabric-prod
    type: VXLAN_EVPN
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/topology.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/topology.nac.yml
---
vxlan:
  topology:
    switches:
      - name: prod-spine1
        serial_number: READ_TIMEOUT
        role: spine
        management:
          management_ipv4_address: 10.15.6.18
          default_gateway_v4: 10.15.6.1
      - name: prod-leaf1
        serial_number: READ_TIMEOUT
        role: leaf
        management:
          management_ipv4_address: 10.15.6.19
          default_gateway_v4: 10.15.6.1
      - name: prod-leaf2
        serial_number: READ_TIMEOUT
        role: leaf
        management:
          management_ipv4_address: 10.15.6.20
          default_gateway_v4: 10.15.6.1
      - name: prod-leaf3
        serial_number: READ_TIMEOUT
        role: border
        management:
          management_ipv4_address: 10.15.6.21
          default_gateway_v4: 10.15.6.1
EOF

To help speed up the process of creating the production fabric files, you can copy this entire section and paste it into your terminal to create all the files at once. All of these files and their contents are very similar to the staging fabric files you created earlier. They are just modified to reflect the production fabric names and IP addresses.

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/global.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/global.nac.yml
---

vxlan:
  global:
    bgp_asn: "65001"
    route_reflectors: 2
    anycast_gateway_mac: 12:34:56:78:90:00
    dns_servers:
      - ip_address: 10.0.249.16
        vrf: management
    ntp_servers:
      - ip_address: 10.81.254.131
        vrf: management
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/underlay.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/underlay.nac.yml
---

vxlan:
  underlay:
    general:
      routing_protocol: ospf
      underlay_routing_loopback_id: 0
      underlay_routing_protocol_tag: UNDERLAY
      underlay_vtep_loopback_id: 1
      replication_mode: multicast
      underlay_rp_loopback_id: 250
    ipv4:
      fabric_interface_numbering: p2p
      subnet_mask: 31
      underlay_routing_loopback_ip_range: 10.11.0.0/22
      underlay_vtep_loopback_ip_range: 10.111.100.0/22
      underlay_rp_loopback_ip_range: 10.251.251.0/24
      underlay_subnet_ip_range: 10.1.0.0/16
    ospf:
      area_id: 0.0.0.0
    multicast:
      underlay_rp_loopback_id: 250
      rp_mode: asm
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/vpc.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/vpc.nac.yml
---

vxlan:
  global:
    bgp_asn: "65001"
    vpc:
      peer_link_vlan: 3600
      peer_keep_alive: management
      auto_recovery_time: 240
      delay_restore_time: 150
      peer_link_port_channel_id: 500
      advertise_pip: true
      domain_id_range: 1-100
  topology:
    vpc_peers:
      - peer1: prod-leaf1
        peer2: prod-leaf2
        fabric_peering: true
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_access.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_access.nac.yml
---

vxlan:
  topology:
    switches:
      - name: prod-leaf1
        interfaces:
          - name: Ethernet1/1
            mode: access
            description: VLAN 2301 Access Interface
            enabled: true
            mtu: jumbo
            speed: auto
            enable_bpdu_guard: false
            access_vlan: 2301
            spanning_tree_portfast: true
      - name: prod-leaf2
        interfaces:
          - name: Ethernet1/1
            mode: access
            description: VLAN 2302 Access Interface
            enabled: true
            mtu: jumbo
            speed: auto
            enable_bpdu_guard: false
            access_vlan: 2302
            spanning_tree_portfast: true
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_vpc.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_vpc.nac.yml
---

vxlan:
  topology:
    switches:
      - name: prod-leaf1
        interfaces:
          - name: port-channel10
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 10
            members:
              - eth1/5
            mtu: jumbo
            speed: auto
            trunk_allowed_vlans:
              - from: 2301
                to: 2302
            spanning_tree_portfast: true
          - name: port-channel20
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 20
            members:
              - eth1/6
            mtu: jumbo
            speed: auto
            spanning_tree_portfast: true
      - name: prod-leaf2
        interfaces:
          - name: port-channel10
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 10
            members:
              - eth1/5
            mtu: jumbo
            speed: auto
            trunk_allowed_vlans:
              - from: 2301
                to: 2302
            spanning_tree_portfast: true
          - name: port-channel20
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 20
            members:
              - eth1/6
            mtu: jumbo
            speed: auto
            spanning_tree_portfast: true
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_routed.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/interfaces_routed.nac.yml
---

vxlan:
  topology:
    switches:
      - name: prod-leaf3
        interfaces:
          - name: Ethernet1/1
            mode: routed
            description: Connected to prod-ext-rtr Ethernet1/1
            enabled: true
          - name: Ethernet1/1.2
            mode: routed_sub
            description: Connected to prod-ext-rtr Ethernet1/1.2
            enabled: true
            dot1q_id: 2
            vrf: NaC-VRF01
            ipv4_address: 10.31.0.1/30
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/vrfs.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/vrfs.nac.yml
---
vxlan:
  overlay:
    vrfs:
      - name: NaC-VRF01
        vrf_id: 150001
        vlan_id: 2001
        vrf_attach_group: all
    vrf_attach_groups:
      - name: all
        switches:
          - hostname: prod-leaf1
          - hostname: prod-leaf2
          - hostname: prod-leaf3
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/networks.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/networks.nac.yml
---
vxlan:
  overlay:
    networks:
      - name: NaC-Net01
        vrf_name: NaC-VRF01
        net_id: 130001
        vlan_id: 2301
        vlan_name: NaC-Net01_vlan2301
        gw_ip_address: 192.168.1.1/24
        network_attach_group: all
      - name: NaC-Net02
        vrf_name: NaC-VRF01
        net_id: 130002
        vlan_id: 2302
        vlan_name: NaC-Net02_vlan2302
        gw_ip_address: 192.168.2.1/24
        network_attach_group: all
    network_attach_groups:
      - name: all
        switches:
          - hostname: prod-leaf1
            ports:
              - port-channel10
          - hostname: prod-leaf2
            ports:
              - port-channel10
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/vrf_lite.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/vrf_lite.nac.yml
---

vxlan:
  overlay_extensions:
    vrf_lites:
      - name: NaC-VRF-Lite01
        vrf: NaC-VRF01
        bgp:
          graceful_restart: false
        switches:
          - name: prod-leaf3
            router_id: 10.31.0.1
            bgp_peers:
              - address: 10.31.0.2
                remote_as: 65999
                description: Peer to prod-ext-rtr in fabric-external-prod
                address_family_ipv4_unicast:
                  send_community: true
                  send_ext_community: true
                  route_map_out: extcon-rmap-filter
            static_routes:
              static_ipv4:
                - prefix: 0.0.0.0/0
                  # route_tag: 12345
                  next_hops:
                    - ip: 10.31.0.2
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-prod/policy.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-prod/policy.nac.yml
---

vxlan:
  policy:
    policies:
      - name: BGP Network Statement Policy
        template_name: bgp_vrf_network
        template_vars:
          BGP_AS: 65001
          VRF_NAME: NaC-VRF01
          IP_PREFIX: 0.0.0.0/0
    groups:
      - name: Border Leaf
        policies:
          - name: BGP Network Statement Policy
    switches:
      - name: prod-leaf3
        groups:
          - Border Leaf
EOF

Step 3 - Create Ansible Host Vars Directory for External Fabric

Once all of the production files have been created, you will need to create a new host_vars/fabric-external-prod directory for the production external fabric files.

cd ~/workspace/ndfclab/nac
mkdir -p host_vars/fabric-external-prod

Step 4 - Create Prod External Fabric Files

Just like the staging external fabric, you will create the files that define the fabric name, and type as well as the topology, global settings, and policy for the production external fabric.

touch ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/fabric.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/fabric.nac.yml
---

vxlan:
  fabric:
    name: fabric-external-prod
    type: External
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/topology.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/topology.nac.yml
---

vxlan:
  topology:
    switches:
      - name: prod-ext-rtr
        serial_number: READ_TIMEOUT
        role: core_router
        management:
          management_ipv4_address: 10.15.6.22
          default_gateway_v4: 10.15.6.1
        interfaces:
          - name: Ethernet1/1
            mode: routed
            description: Routed Interface towards Border Leaf
            enabled: true
          - name: Ethernet1/1.2
            mode: routed_sub
            description: Routed Sub-Interface towards Border Leaf
            enabled: true
            dot1q_id: 2
            ipv4_address: 10.31.0.2/30
          - name: loopback0
            mode: loopback
            description: NaC Ping Test Loopback
            enabled: true
            ipv4_address: 172.16.1.1
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/global.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/global.nac.yml
---

vxlan:
  global:
    bgp_asn: "65999"
EOF

touch ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/policy.nac.yml
cat << EOF > ~/workspace/ndfclab/nac/host_vars/fabric-external-prod/policy.nac.yml
---

vxlan:
  policy:
    policies:
      - name: BGP Neighbor Policy
        template_name: External_VRF_Lite_eBGP
        template_vars:
          asn: 65999
          vrfName: default
          NEIGHBOR_IP: 10.31.0.1
          NEIGHBOR_ASN: 65001
      - name: BGP Network Statement Policy
        template_name: bgp_network
        template_vars:
          BGP_AS: 65999
          IP_MASK: 172.16.1.1/32
    groups:
      - name: External Router
        policies:
          - name: BGP Neighbor Policy
          - name: BGP Network Statement Policy
    switches:
      - name: prod-ext-rtr
        groups:
          - External Router
EOF

Step 5 - Add New Production Fabric Files for Committing to GitLab Repo

Perform a git add to move your configuration intent for your prod fabric to git staging.

git add .

Step 6 - Double Check Files Staged For Commit

Review what is staged to be committed to your git repo.

git status .

The following files are staged for commit. Make sure your list matches the output below!

  On branch main
  Your branch is up to date with 'origin/main'.

  Changes to be committed:
    (use "git restore --staged <file>..." to unstage)
          new file:   host_vars/fabric-external-prod/fabric.nac.yml
          new file:   host_vars/fabric-external-prod/global.nac.yml
          new file:   host_vars/fabric-external-prod/policy.nac.yml
          new file:   host_vars/fabric-external-prod/topology.nac.yml
          new file:   host_vars/fabric-prod/fabric.nac.yml
          new file:   host_vars/fabric-prod/global.nac.yml
          new file:   host_vars/fabric-prod/interfaces_access.nac.yml
          new file:   host_vars/fabric-prod/interfaces_routed.nac.yml
          new file:   host_vars/fabric-prod/interfaces_vpc.nac.yml
          new file:   host_vars/fabric-prod/networks.nac.yml
          new file:   host_vars/fabric-prod/policy.nac.yml
          new file:   host_vars/fabric-prod/topology.nac.yml
          new file:   host_vars/fabric-prod/underlay.nac.yml
          new file:   host_vars/fabric-prod/vpc.nac.yml
          new file:   host_vars/fabric-prod/vrf_lite.nac.yml
          new file:   host_vars/fabric-prod/vrfs.nac.yml
          new file:   hosts.prod.yml

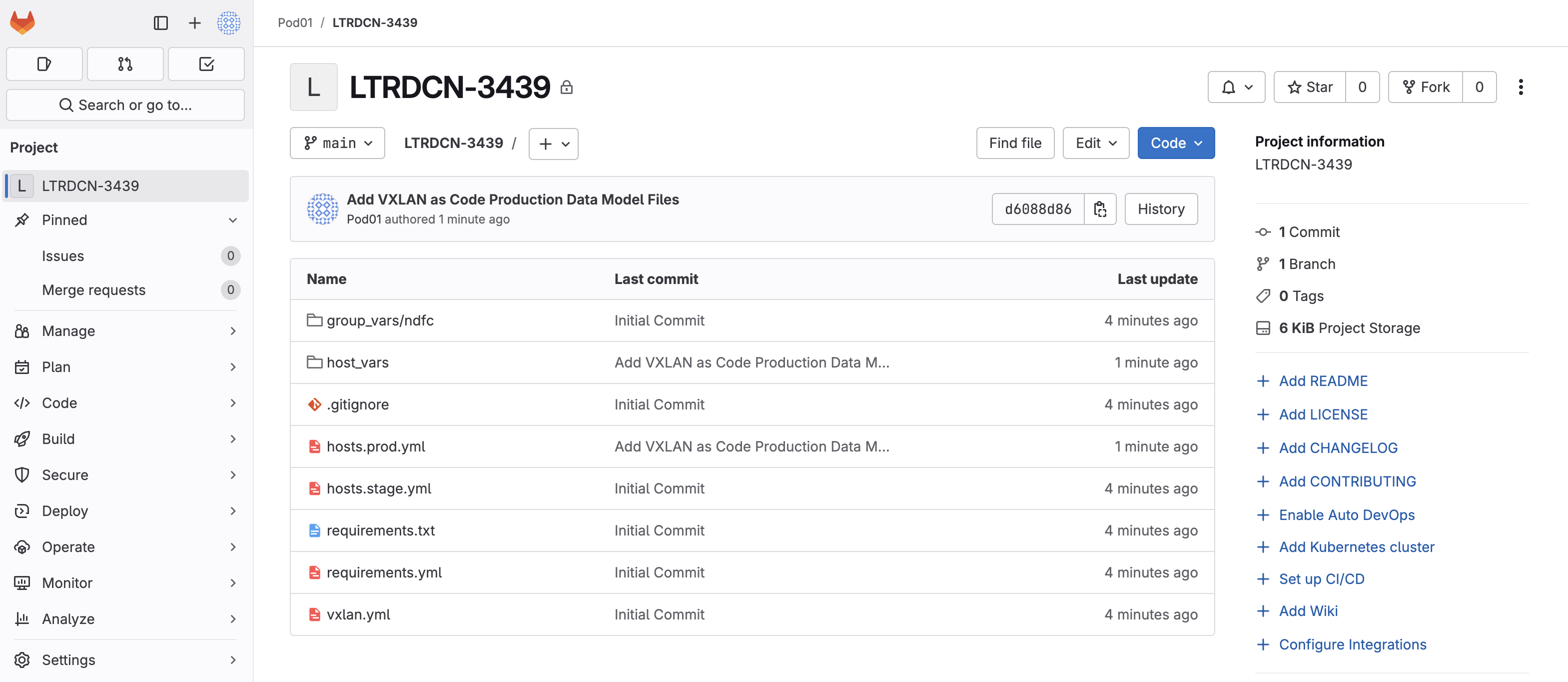

Step 7 - Commit Files to the GitLab Repo

Commit your prod configuration intent with a meaningful message.

git commit -m "Add VXLAN as Code Production Data Model Files"

  [main ebe193c] Add VXLAN as Code Production Data Model Files
  17 files changed, 346 insertions(+)
  create mode 100644 host_vars/fabric-external-prod/fabric.nac.yml
  create mode 100644 host_vars/fabric-external-prod/global.nac.yml
  create mode 100644 host_vars/fabric-external-prod/policy.nac.yml
  create mode 100644 host_vars/fabric-external-prod/topology.nac.yml
  create mode 100644 host_vars/fabric-prod/fabric.nac.yml
  create mode 100644 host_vars/fabric-prod/global.nac.yml
  create mode 100644 host_vars/fabric-prod/interfaces_access.nac.yml
  create mode 100644 host_vars/fabric-prod/interfaces_routed.nac.yml
  create mode 100644 host_vars/fabric-prod/interfaces_vpc.nac.yml
  create mode 100644 host_vars/fabric-prod/networks.nac.yml
  create mode 100644 host_vars/fabric-prod/policy.nac.yml
  create mode 100644 host_vars/fabric-prod/topology.nac.yml
  create mode 100644 host_vars/fabric-prod/underlay.nac.yml
  create mode 100644 host_vars/fabric-prod/vpc.nac.yml
  create mode 100644 host_vars/fabric-prod/vrf_lite.nac.yml
  create mode 100644 host_vars/fabric-prod/vrfs.nac.yml
  create mode 100644 hosts.prod.yml

Step 8 - Push Files to the GitLab Repo

Finally, push your commit to your remote repo in GitLab.

git push -u origin main

  Enumerating objects: 24, done.
  Counting objects: 100% (24/24), done.
  Delta compression using up to 8 threads
  Compressing objects: 100% (21/21), done.
  Writing objects: 100% (22/22), 4.09 KiB | 1.02 MiB/s, done.
  Total 22 (delta 3), reused 0 (delta 0), pack-reused 0
  To 10.15.0.159:Pod06_2025_01/LTRDCN-3439.git
    bb2a31a..ebe193c  main -> main
  Branch 'main' set up to track remote branch 'main' from 'origin'.

Step 9 - Return to GitLab and Verify Repo Is Populated

In Gitlab, you need to refresh the page to see your repo populated.

1. Click the project name, LTRDCN-3439





2. Once you click the project name, LTRDCN-3439, your repo should be populated with the files you just committed.

Continue to the next section to define your GitLab CI file for your CI/CD pipeline.
