Step 1 - Create

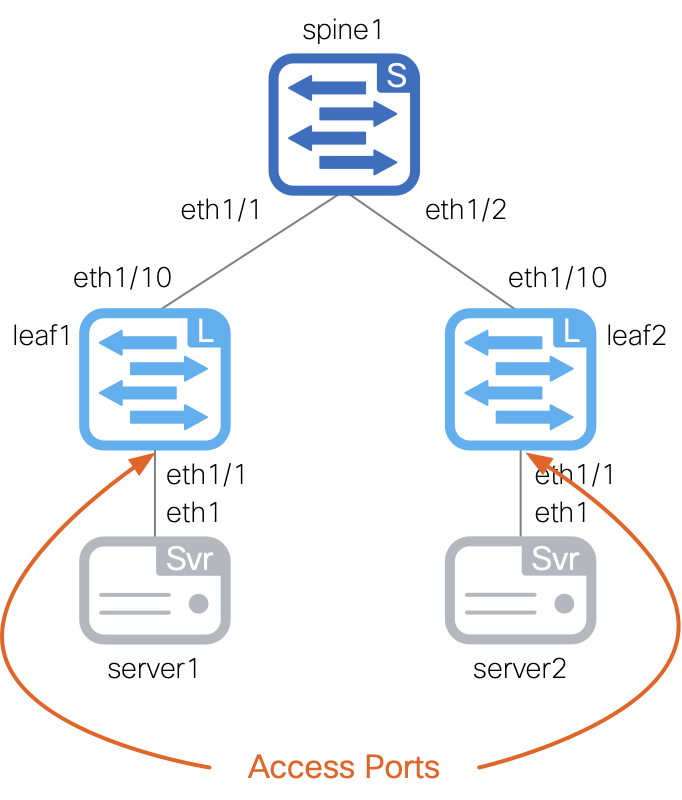

Under the topology section you can define the interfaces that will be configured on the switches in your fabric. You will create a new file named interfaces_access.nac.yml. This file will contain the access interfaces to use per switch on the fabric. It defines which VLAN to use as well as other parameters such as MTU, speed, and description.

touch ~/workspace/ndfclab/nac/host_vars/fabric-stage/interfaces_access.nac.yml
code-server -r ~/workspace/ndfclab/nac/host_vars/fabric-stage/interfaces_access.nac.yml

Step 2 - Create

In addition to the access interfaces, you will also create a new file named interfaces_vpc.nac.yml. This file will contain the vPC interfaces to use per switch on the fabric. It defines which VLANs to allow on the trunk, as well as other parameters such as VPC ID, port-channel mode, and port-channel member interfaces.

touch ~/workspace/ndfclab/nac/host_vars/fabric-stage/interfaces_vpc.nac.yml
code-server -r ~/workspace/ndfclab/nac/host_vars/fabric-stage/interfaces_vpc.nac.yml

---

vxlan:
  topology:
    switches:
      - name: staging-leaf1
        interfaces:
          - name: port-channel10
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 10
            members:
              - eth1/5
            mtu: jumbo
            speed: auto
            trunk_allowed_vlans:
              - from: 2301
                to: 2302
            spanning_tree_portfast: true
          - name: port-channel20
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 20
            members:
              - eth1/6
            mtu: jumbo
            speed: auto
            spanning_tree_portfast: true
      - name: staging-leaf2
        interfaces:
          - name: port-channel10
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 10
            members:
              - eth1/5
            mtu: jumbo
            speed: auto
            trunk_allowed_vlans:
              - from: 2301
                to: 2302
            spanning_tree_portfast: true
          - name: port-channel20
            mode: trunk
            enabled: true
            pc_mode: active
            vpc_id: 20
            members:
              - eth1/6
            mtu: jumbo
            speed: auto
            spanning_tree_portfast: true

Step 3 - Execute Ansible Playbook

Make sure you are in your root Ansible directory

cd ~/workspace/ndfclab/nac

From the root Ansible project directory execute the following command:

ansible-playbook -i hosts.stage.yml vxlan.yml --tags cr_manage_interfaces

Upon a successful run of the playbook your output should look as follows:

  PLAY RECAP ************************************************************************************************************************************************************
  fabric-stage                      : ok=192  changed=29   unreachable=0    failed=0    skipped=424  rescued=0    ignored=0


  PLAYBOOK RECAP ********************************************************************************************************************************************************
  Playbook run took 0 days, 0 hours, 1 minutes, 3 seconds


  TASKS RECAP ***********************************************************************************************************************************************************
  Wednesday 07 May 2025  16:40:27 +0000 (0:00:00.240)       0:01:03.696 *********
  ===============================================================================
  cisco.nac_dc_vxlan.create : Manage Interface vPC --------------------------------------------------------------------------------------------------------------- 3.52s
  cisco.nac_dc_vxlan.create : Manage Interface Access ------------------------------------------------------------------------------------------------------------ 2.87s
  cisco.nac_dc_vxlan.connectivity_check : Get Cisco NDFC Version ------------------------------------------------------------------------------------------------- 1.79s
  cisco.nac_dc_vxlan.common : Get POAP Data From POAP Enabled Devices -------------------------------------------------------------------------------------------- 0.84s
  cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host -------------------------------------------------------------------------------------------------- 0.83s
  cisco.nac_dc_vxlan.common : Build Fabric Creation Parameters From Template ------------------------------------------------------------------------------------- 0.77s
  cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config --------------------------------------------------- 0.73s
  cisco.nac_dc_vxlan.connectivity_check : Verify Authorization to NDFC 10.15.0.26 on Port 443 -------------------------------------------------------------------- 0.73s
  cisco.nac_dc_vxlan.common : Build Networks Attach List From Template ------------------------------------------------------------------------------------------- 0.70s
  cisco.nac_dc_vxlan.common : Build Interface -------------------------------------------------------------------------------------------------------------------- 0.68s
  cisco.nac_dc_vxlan.common : Build VPC interface ---------------------------------------------------------------------------------------------------------------- 0.68s
  cisco.nac_dc_vxlan.common : Build Interface -------------------------------------------------------------------------------------------------------------------- 0.68s
  cisco.nac_dc_vxlan.common : Build Policy List From Template ---------------------------------------------------------------------------------------------------- 0.67s
  cisco.nac_dc_vxlan.common : Build sub_interface ---------------------------------------------------------------------------------------------------------------- 0.67s
  cisco.nac_dc_vxlan.common : Build Interface -------------------------------------------------------------------------------------------------------------------- 0.66s
  cisco.nac_dc_vxlan.common : Build Interface -------------------------------------------------------------------------------------------------------------------- 0.66s
  cisco.nac_dc_vxlan.common : Build Loopback Interfaces List From Template --------------------------------------------------------------------------------------- 0.65s
  cisco.nac_dc_vxlan.common : Build Links for vPC Peering -------------------------------------------------------------------------------------------------------- 0.64s
  cisco.nac_dc_vxlan.common : Build Interface -------------------------------------------------------------------------------------------------------------------- 0.64s
  cisco.nac_dc_vxlan.common : Build VRFs Attach List From Template for loopback ---------------------------------------------------------------------------------- 0.64s

  ROLES RECAP ***********************************************************************************************************************************************************
  Wednesday 07 May 2025  16:40:27 +0000 (0:00:00.242)       0:01:03.696 *********
  ===============================================================================
  common ----------------------------------------------------------------- 42.08s
  create ------------------------------------------------------------------ 9.58s
  validate ---------------------------------------------------------------- 5.91s
  connectivity_check ------------------------------------------------------ 4.03s
  common_global ----------------------------------------------------------- 0.06s
  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
  total ------------------------------------------------------------------ 61.65s

Step 4 - Return to NDFC & Verify Interface Configuration is Pending

Return to your NDFC browser where you should be sitting on the Switches tab.

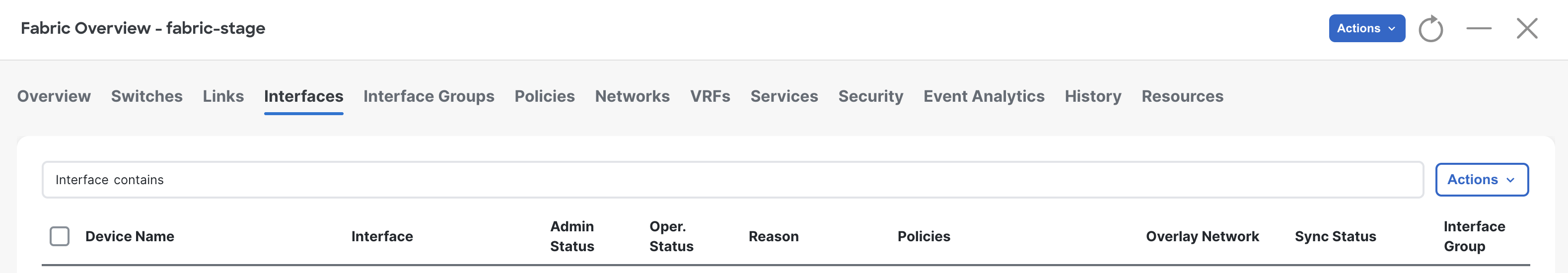

1. Click the Interfaces tab in the top navigation bar

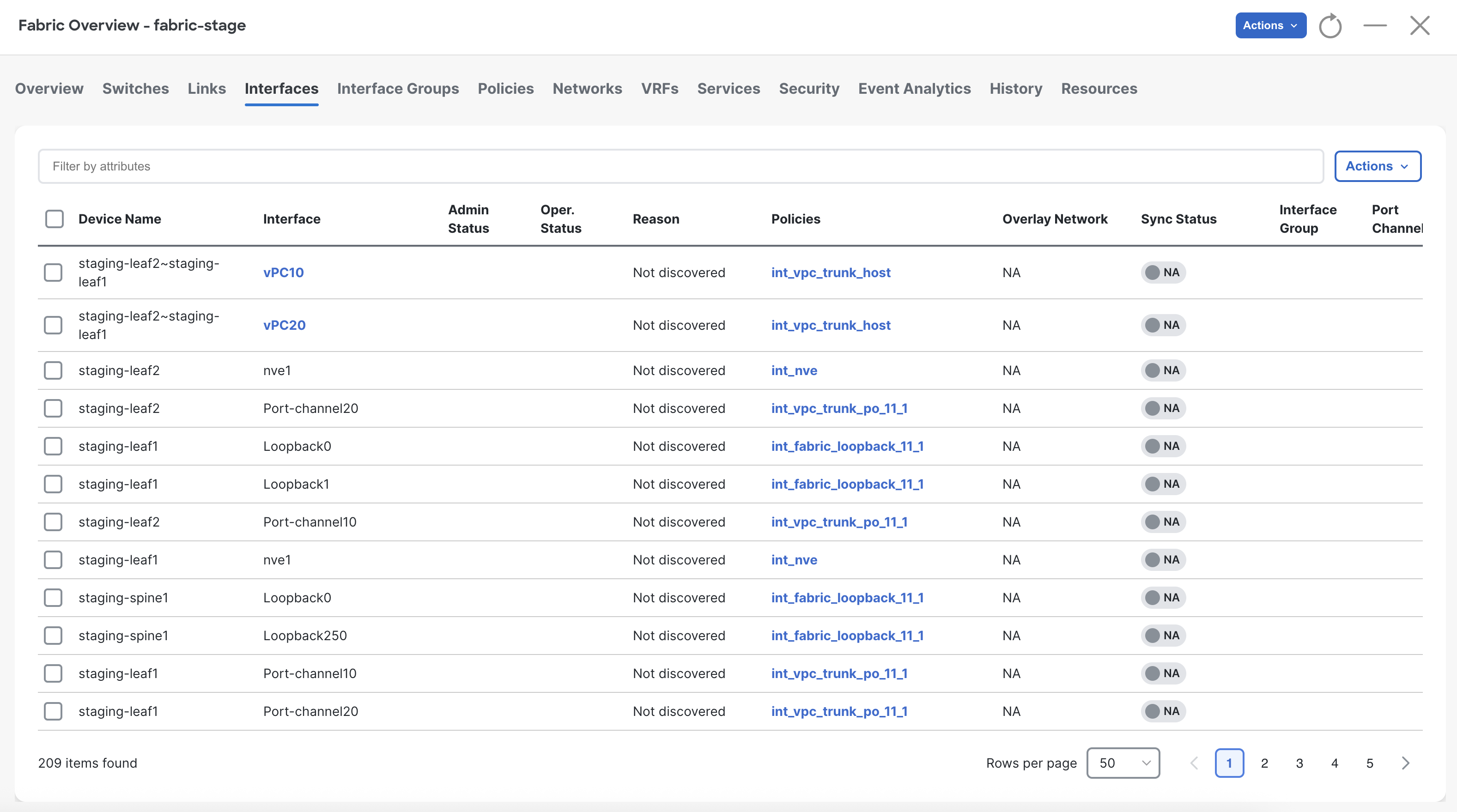

When reviewing the Interfaces tab, it is expected to see interfaces in various status since a deployment has not taken place yet. Again, you will deploy to your switches in the deploy role. Following the remaining steps to verify the interface configuration is pre-staged in NDFC.




2. In the Filter by attributes, in the drop down list select Interface, then repeat and select contains




3. Then type vpc and hit enter

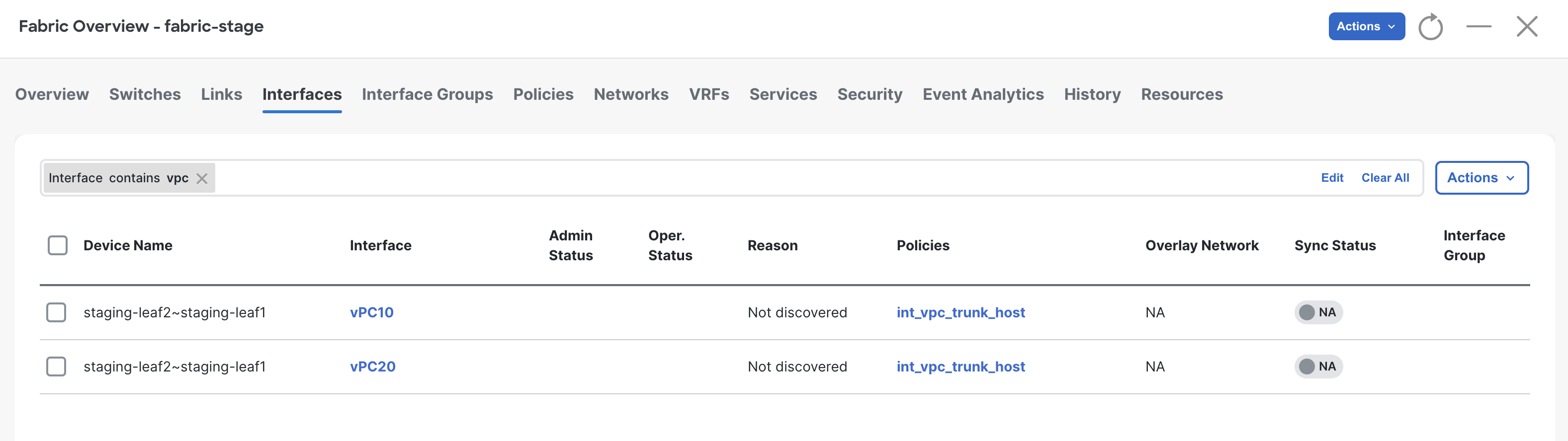

Make sure Interfaces vPC10 and vPC20 are created between staging-leaf1 and staging-leaf2 and they are NA under Sync Status. These will change to In-Sync after the deployment role is completed later in the lab.





4. Clear the current filter. Then in the Filter by attributes drop down select Interface, then select ==




5. Then type in Ethernet1/1 and hit Enter

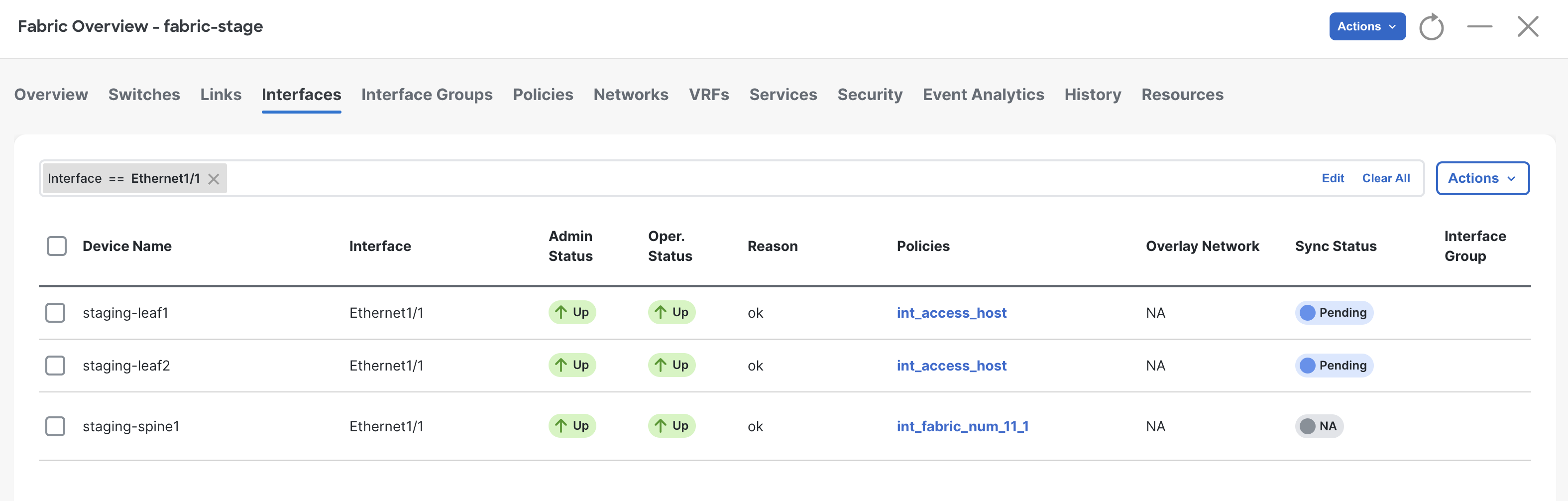

Verify that the policy for interface Ethernet1/1 on leaf1 and leaf2 is set to int_access_host

Step 5 - Return to VSCode & Close All Open Tabs

On the keyword press Ctrl + K + W. This should close all open tabs to clear your workspace for the next section.

Continue to the next section to build out the overlay by defining the VRFs and networks on the staging fabric.
