When you moved your child fabrics to the MSD fabric group in ND, you moved the overlay management responsibilities to the Multi-Site (MSD) level. In ND, specific overlay configurations for VRFs are no longer allowed to be configured at the individual fabric level once in a Multi-Site fabric group. The initial adding of VRFs is now done at the Multi-Site level in ND. However, specific VRF and Network configuration is split between the Multi-Site fabric and then, subsequently by revisiting the VRF and Network in the individual child fabric(s).
In NaC, the data model for Multi-Site overlay configuration assumes full view and management of the overlay VRF by managing it at the Multi-Site level and transparently down to the child fabrics as needed, depending on the configuration parameters. This means, that you do not have to retain and correlate VRF configuration at both the Multi-Site and individual fabric levels.
With the management now at the Multi-Site level, you need to ensure that any existing overlay configurations for VRFs and Networks in the individual fabrics are removed or commented out when it comes to subsequent Ansible playbook runs.
Comment out any existing content in the vrfs.nac.yml file for your Site1 fabric.
sed -i 's/^/# /' ~/workspace/ndlab/nac/host_vars/site1-fabric/vrfs.nac.yml
Comment out any existing content in the networks.nac.yml file for your Site1 fabric.
sed -i 's/^/# /' ~/workspace/ndlab/nac/host_vars/site1-fabric/networks.nac.yml
Create a multisite overlay VRF file named vrfs.nac.yml. This file will contain the VRF configuration for your Multi-Site fabric.
What is important in this situation is to ensure you move over any VRFs from your existing child fabrics that continue to need to be part of the Multi-Site overlay.

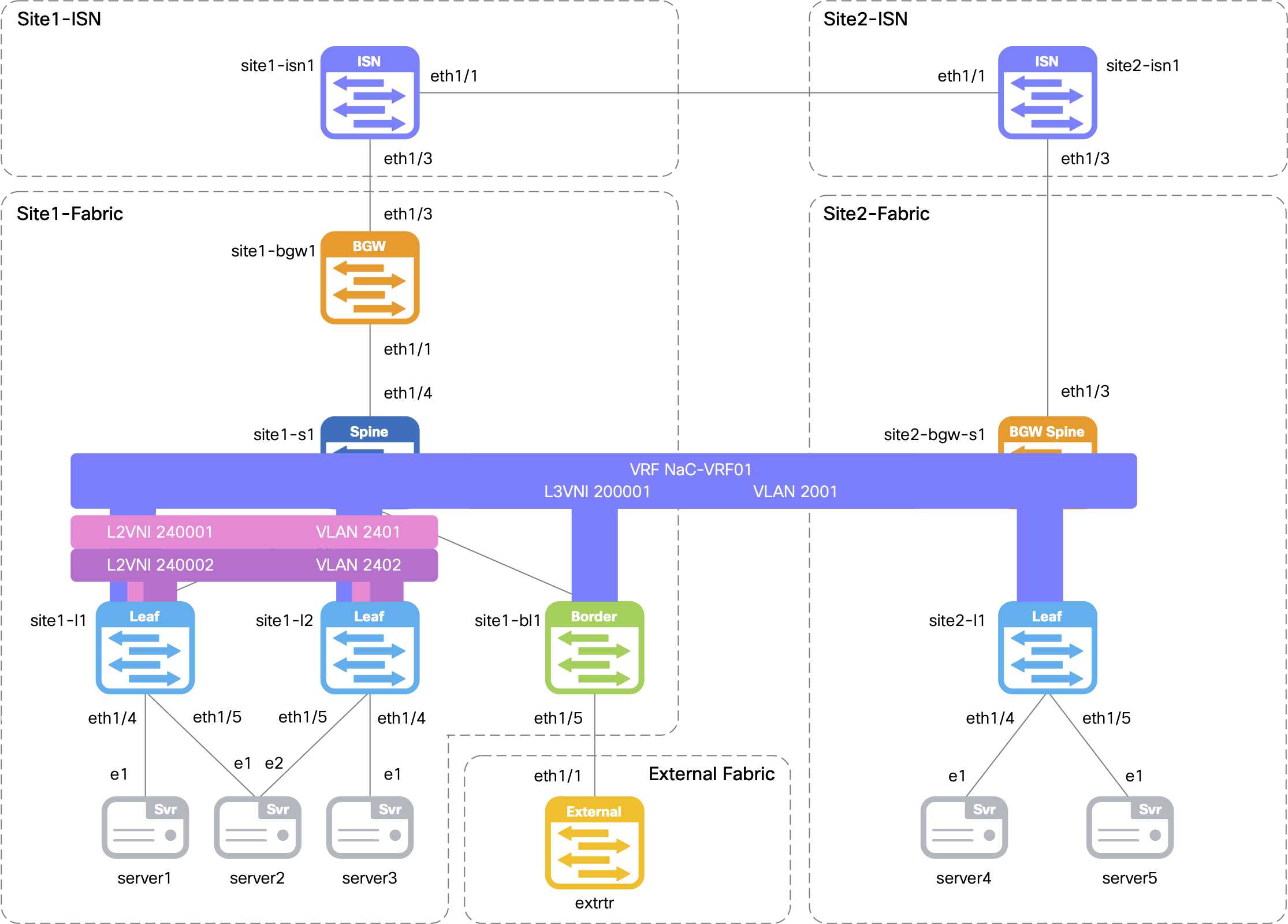

In this case, you have a single VRF named NaC-VRF01 that needs to be added to the file but now will be updated and associated to both Site1 and Site2 fabrics,
thus extending the VRF across the Multi-Site fabric.
Make note of two data model sections in this file:
child_fabrics parameter to associate the VRF to multiple child fabrics in the Multi-Site fabric group.
touch ~/workspace/ndlab/nac/host_vars/msd-fabric-group/vrfs.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/msd-fabric-group/vrfs.nac.yml
---
vxlan:
multisite:
overlay:
vrfs:
- name: NaC-VRF01
vrf_id: 200001
vlan_id: 2001
child_fabrics:
- name: site1-fabric
- name: site2-fabric
vrf_attach_group: all
vrf_attach_groups:
- name: all
switches:
- hostname: site1-l1
- hostname: site1-l2
- hostname: site1-bl1
- hostname: site1-bgw1
- hostname: site2-l1
- hostname: site2-bgw-s1
Create a multisite overlay Network file named networks.nac.yml. This file will contain the Network configuration for your Multi-Site fabric.
What is important in this situation is to ensure you move over any Networks from your existing child fabrics that continue to need to be part of the Multi-Site overlay.
In this case, you have two Networks named NaC-Net01 and NaC-Net02 that need to be added to the file.

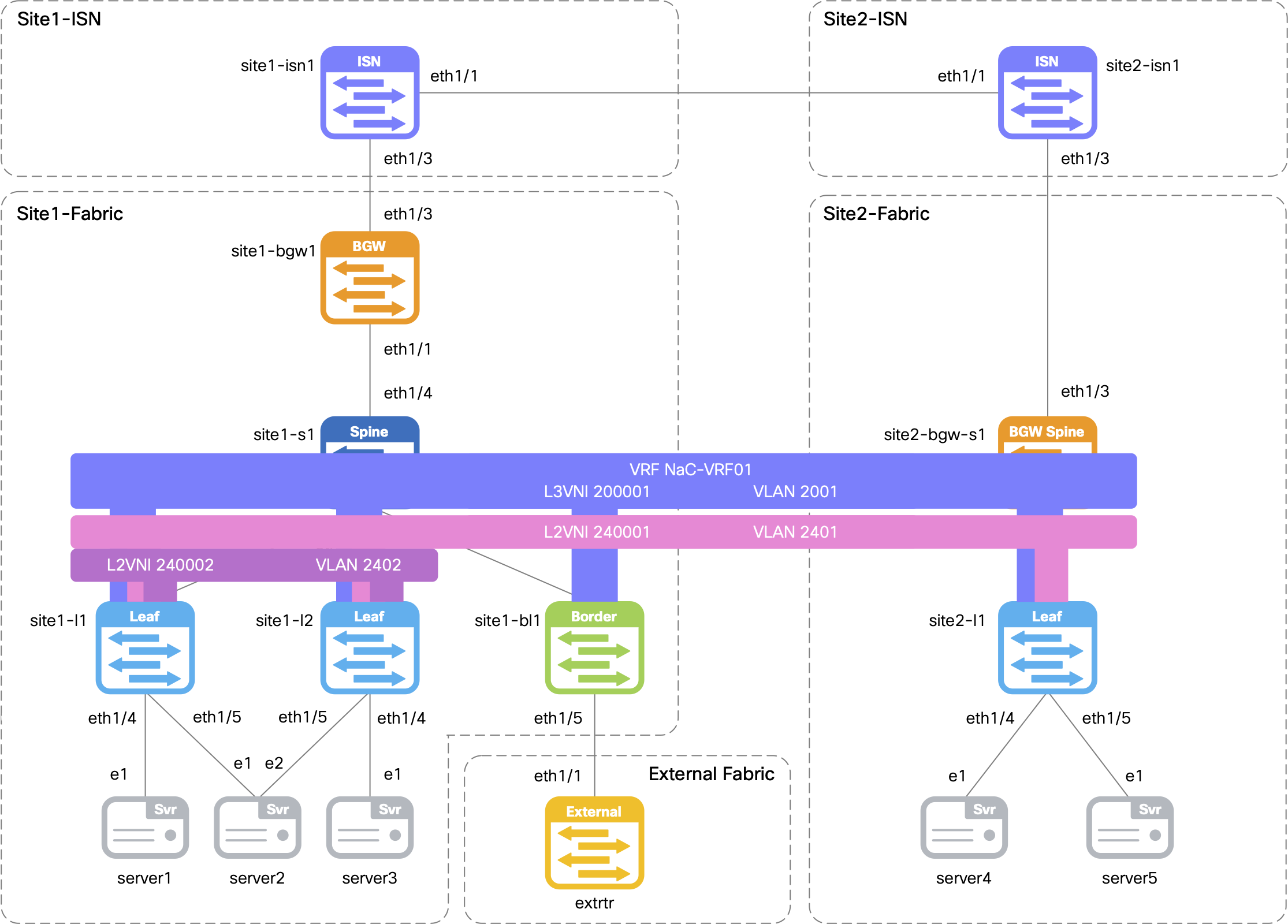

Additionally, you will extend NaC-Net01 from Site1 to Site2 by associating both child fabrics and updating the network attachment groups to include switches from both sites.
Again, make note of two data model sections in this file:
child_fabrics parameter to associate the Network to multiple child fabrics in the Multi-Site fabric group.
touch ~/workspace/ndlab/nac/host_vars/msd-fabric-group/networks.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/msd-fabric-group/networks.nac.yml
---
vxlan:
multisite:
overlay:
networks:
- name: NaC-Net01
vrf_name: NaC-VRF01
net_id: 240001
vlan_id: 2401
vlan_name: NaC-Net01_vlan2401
gw_ip_address: 192.168.1.1/24
child_fabrics:
- name: site1-fabric
- name: site2-fabric
network_attach_group: net01
- name: NaC-Net02
vrf_name: NaC-VRF01
net_id: 240002
vlan_id: 2402
vlan_name: NaC-Net02_vlan2402
gw_ip_address: 192.168.2.1/24
child_fabrics:
- name: site1-fabric
- name: site2-fabric
network_attach_group: net02
network_attach_groups:
- name: net01
switches:
- hostname: site1-l1
ports:
- ethernet1/4
- hostname: site1-l2
ports:
- ethernet1/4
- hostname: site1-bgw1
- hostname: site2-l1
ports:
- ethernet1/4
- hostname: site2-bgw-s1
- name: net02
switches:
- hostname: site1-l1
ports:
- port-channel5
- hostname: site1-l2
ports:
- port-channel5
Make sure you are in your root Ansible directory.
cd ~/workspace/ndlab/nac
From the root Ansible project directory execute the following command:
ansible-playbook -i hosts.msd.yml vxlan.yml
Upon a successful run of the playbook your output should look as follows:
<... SNIP ...> PLAY RECAP ************************************************************************************************************************************************************************** msd-fabric-group : ok=112 changed=19 unreachable=0 failed=0 skipped=1460 rescued=0 ignored=0 PLAYBOOK RECAP ********************************************************************************************************************************************************************** Playbook run took 0 days, 0 hours, 3 minutes, 23 seconds TASKS RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 18:54:51 +0000 (0:00:00.065) 0:03:23.396 ******* =============================================================================== cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for MSD Fabric in Nexus Dashboard -------------------------------------------------------------------------------------- 67.95s cisco.nac_dc_vxlan.create : Manage MSD Fabric Networks in Nexus Dashboard --------------------------------------------------------------------------------------------------- 14.30s cisco.nac_dc_vxlan.create : Manage MSD Fabric VRFs in Nexus Dashboard -------------------------------------------------------------------------------------------------------- 7.73s cisco.nac_dc_vxlan.create : Prepare Multisite Data --------------------------------------------------------------------------------------------------------------------------- 7.12s cisco.nac_dc_vxlan.remove : Prepare Multisite Data --------------------------------------------------------------------------------------------------------------------------- 7.05s cisco.nac_dc_vxlan.create : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.18s cisco.nac_dc_vxlan.common : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.14s cisco.nac_dc_vxlan.connectivity_check : Get Cisco Nexus Dashboard Fabric Controller Version ---------------------------------------------------------------------------------- 1.74s cisco.nac_dc_vxlan.common : Backup Previous Data File If It Exists ----------------------------------------------------------------------------------------------------------- 1.54s cisco.nac_dc_vxlan.common : Backup Previous Data File If It Exists ----------------------------------------------------------------------------------------------------------- 1.50s cisco.nac_dc_vxlan.common : Prepare Multisite Add and Remove Child Fabric Data ----------------------------------------------------------------------------------------------- 1.41s cisco.nac_dc_vxlan.create : Backup Previous Data File If It Exists ----------------------------------------------------------------------------------------------------------- 1.28s cisco.nac_dc_vxlan.create : Backup Previous Data File If It Exists ----------------------------------------------------------------------------------------------------------- 1.26s cisco.nac_dc_vxlan.create : Manage MSD Fabric VRF Loopback Attachments in Nexus Dashboard ------------------------------------------------------------------------------------ 1.21s cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host ---------------------------------------------------------------------------------------------------------------- 0.93s cisco.nac_dc_vxlan.connectivity_check : Verify Authorization to Nexus Dashboard ---------------------------------------------------------------------------------------------- 0.78s cisco.nac_dc_vxlan.create : Build VRFs Attach List From Template ------------------------------------------------------------------------------------------------------------- 0.74s cisco.nac_dc_vxlan.create : Build Networks Attach List From Template --------------------------------------------------------------------------------------------------------- 0.72s cisco.nac_dc_vxlan.common : Build Fabric Creation Parameters From Template --------------------------------------------------------------------------------------------------- 0.70s cisco.nac_dc_vxlan.common : Build BGW Anycast VIP IP address allocation From Template ---------------------------------------------------------------------------------------- 0.69s ROLES RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 18:54:51 +0000 (0:00:00.070) 0:03:23.400 ******* =============================================================================== deploy ----------------------------------------------------------------- 69.39s create ----------------------------------------------------------------- 53.52s common ----------------------------------------------------------------- 42.81s remove ----------------------------------------------------------------- 21.43s validate ---------------------------------------------------------------- 6.43s connectivity_check ------------------------------------------------------ 3.91s common_global ----------------------------------------------------------- 0.05s ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ total ----------------------------------------------------------------- 197.53s

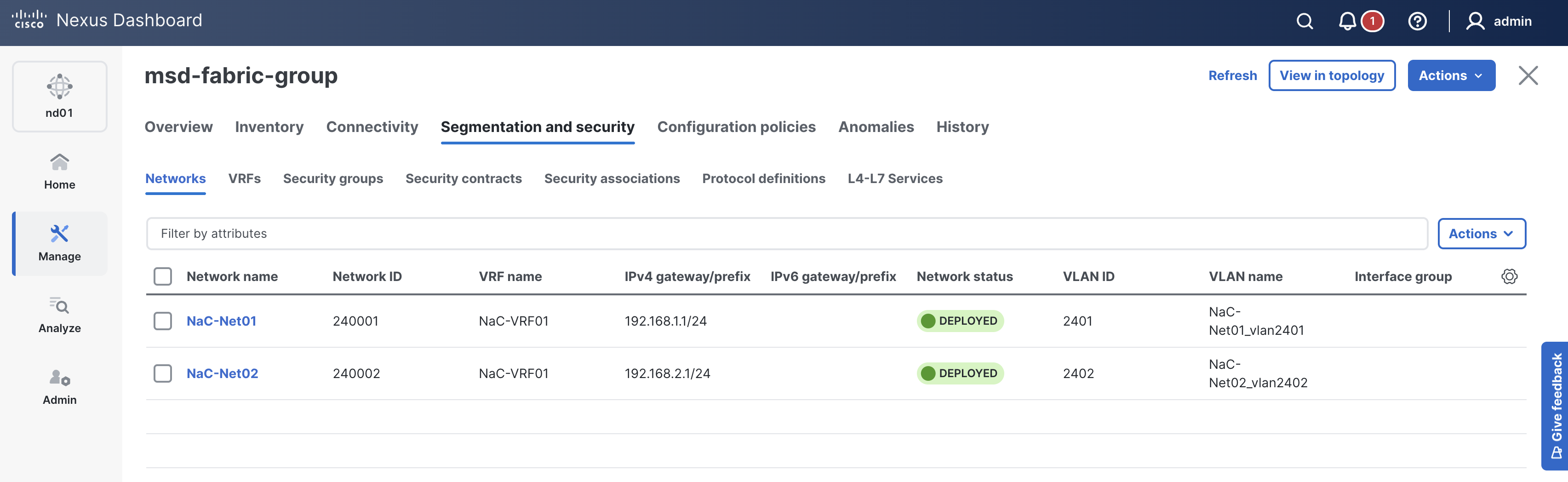

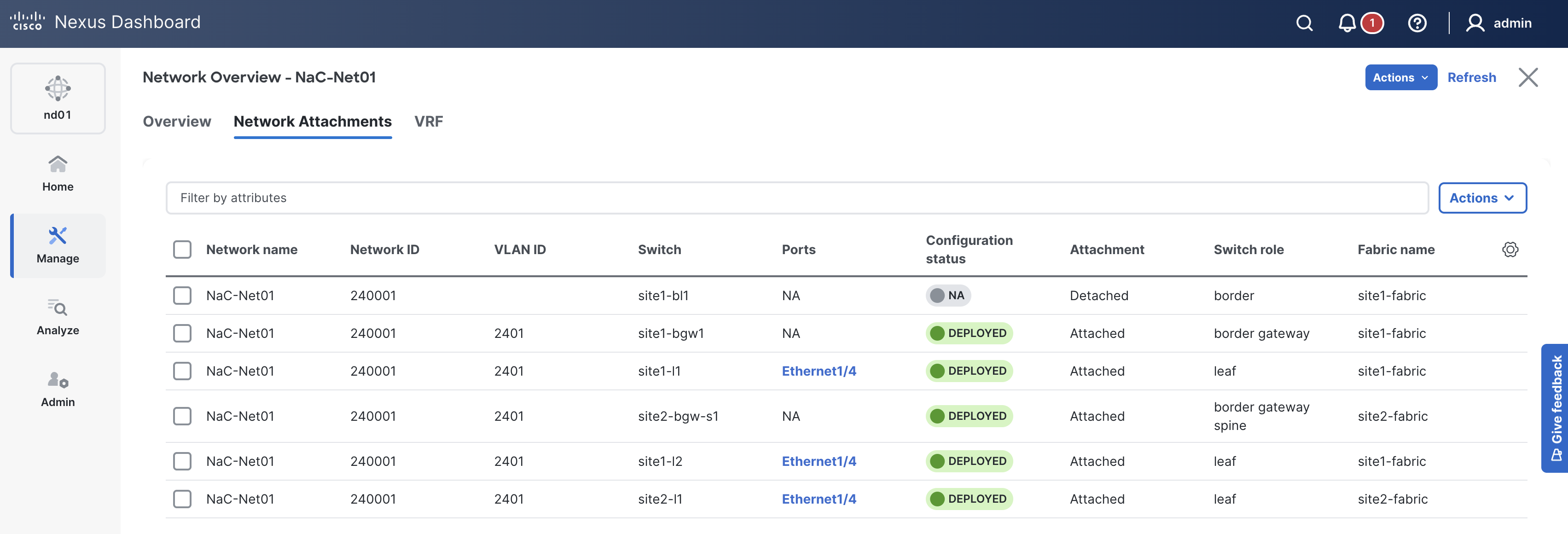

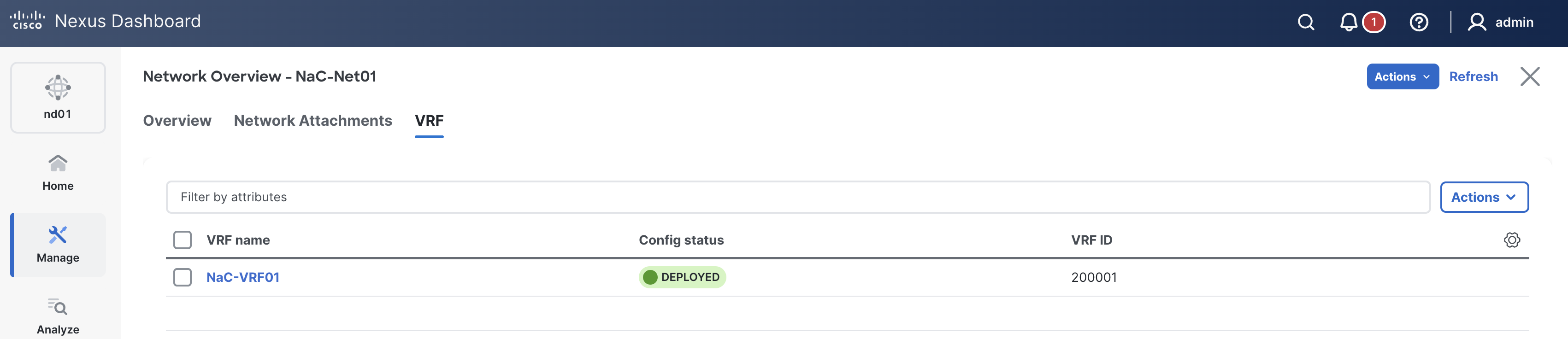

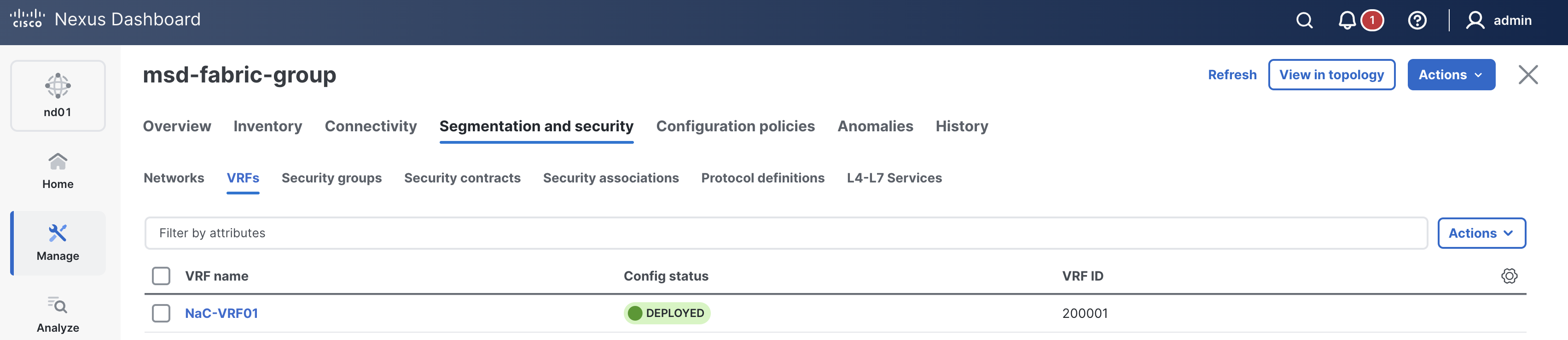

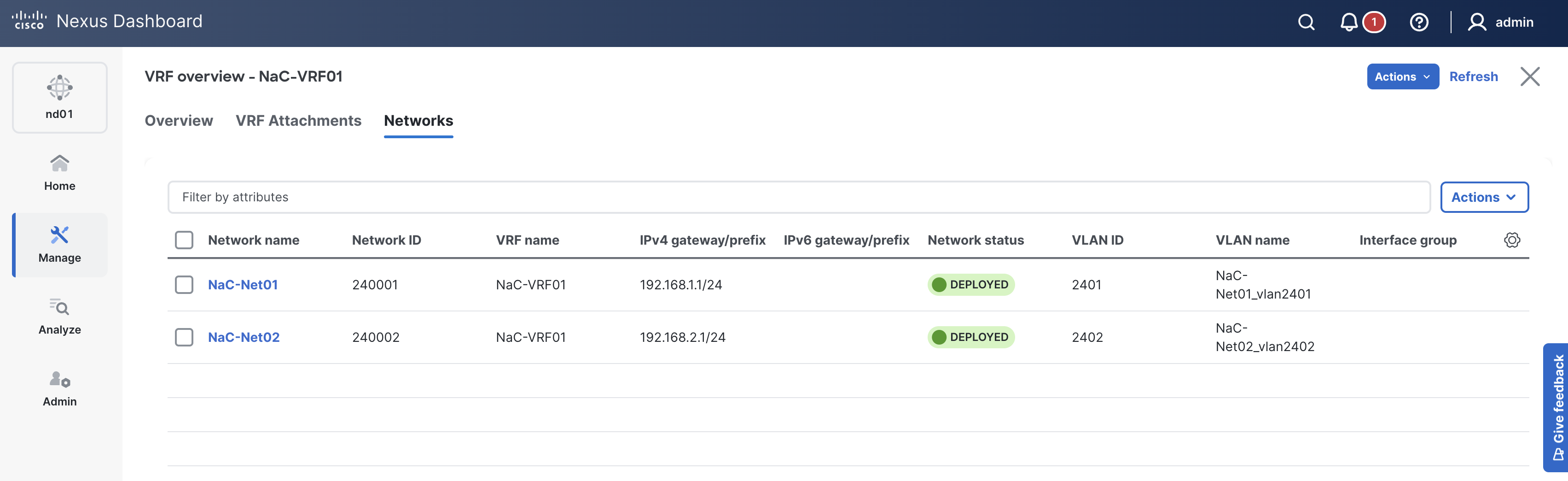

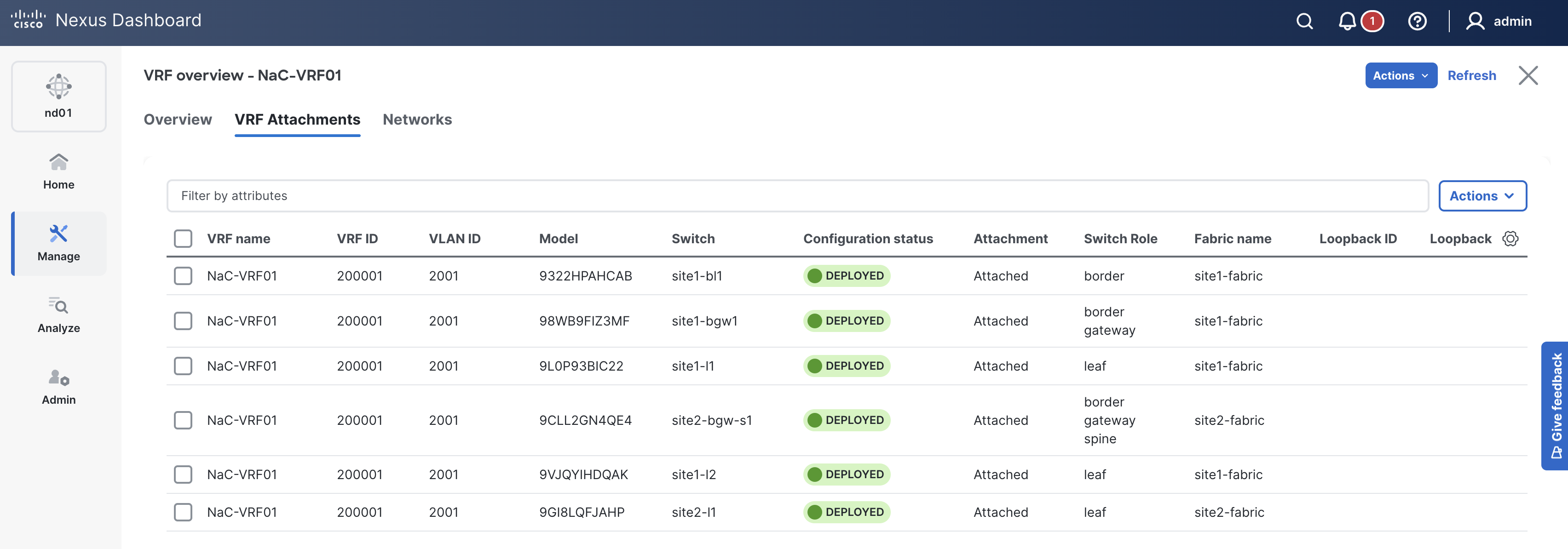

Return to your ND browser where you should be sitting on the Switches tab
Return to your terminal window and connect to Server4 located in Site2 to verify connectivity over the Multi-Site overlay to Server1 located in Site1.
If prompted to accept the RSA key fingerprint like below, type or copy yes then input the password above.
When prompted, the password is cisco.123 .
ssh -l cisco 10.15.30.104
cisco@10.15.30.104's password:
Initiate a ping from Server4 to Server1's IP address of 192.168.1.101.
ping -c 5 192.168.1.101
Output:
PING 192.168.1.101 (192.168.1.101): 56 data bytes 64 bytes from 192.168.1.101: seq=0 ttl=253 time=11.631 ms 64 bytes from 192.168.1.101: seq=1 ttl=253 time=10.717 ms 64 bytes from 192.168.1.101: seq=2 ttl=253 time=11.234 ms 64 bytes from 192.168.1.101: seq=3 ttl=253 time=10.291 ms 64 bytes from 192.168.1.101: seq=4 ttl=253 time=11.116 ms --- 192.168.1.101 ping statistics --- 5 packets transmitted, 5 packets received, 0% packet loss round-trip min/avg/max = 10.291/10.997/11.631 ms
Disconnect from Server4 by typing exit.
exit
Connection to 10.15.30.104 closed.
Navigate back to your VSCode application.
Continue to the next section to bring together everything you have done locally with ND and NaC into a NetDevOps pipeline.
