Return to your Visual Studio Code Terminal window. Create the host_vars directory for your Site1 ISN fabric.
mkdir -p host_vars/site1-isn
For your site1-isn fabric, create a file named fabric.nac.yml in the host_vars/site1-isn directory.
This fabric is also a small representation in this lab, so all of your data model definition of the fabric can be contained to a single file.
Make note that below in the data model, the multisite section is introduced.

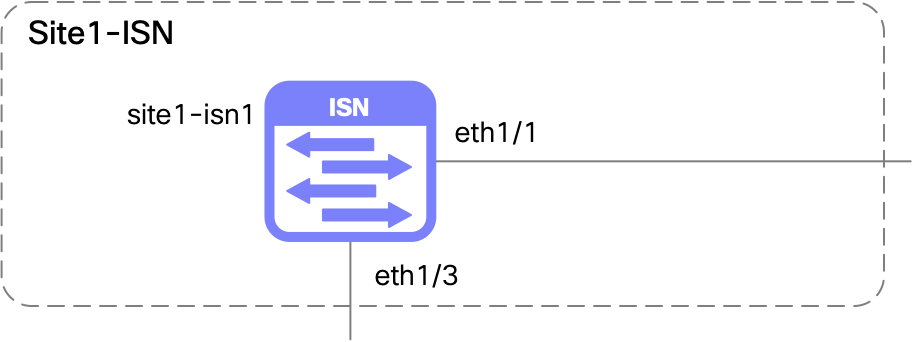

You still define the topology of the fabric switches, interfaces, and policies as before. The interfaces defined on the ISN switch include a loopback interface for the route server and a routed interface to connect to Site2 ISN. In the policy section, an external BGP neighbor policy is defined to peer with Site2 ISN using an ND policy template. With regards to interface Ethernet1/3 in the diagram, this interface is not defined in the data model as the settings you will use for Multi-Site (MSD) will be applied automatically by ND when the Multi-Site extension is enabled later in the lab.
touch ~/workspace/ndlab/nac/host_vars/site1-isn/fabric.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/site1-isn/fabric.nac.yml
---
vxlan:
fabric:
name: site1-isn
type: ISN
multisite:
isn:
bgp_asn: "65101"
topology:
switches:
- name: site1-isn1
serial_number: 959MWVWAYQH
role: core_router
management:
default_gateway_v4: 10.15.30.1
management_ipv4_address: 10.15.30.17
interfaces:
- name: Loopback101
mode: loopback
description: Route Server Loopback
enabled: true
ipv4_address: 10.101.101.101
ipv4_route_tag: 54321
- name: Ethernet1/1
mode: routed
description: To Site2 ISN1 Eth1/1
enabled: true
ipv4_address: 10.0.0.0/31
policy:
policies:
- name: ebgp_neighbor
template_name: ext_bgp_neighbor
template_vars:
asn: "65101"
NEIGHBOR_ASN: "65201"
NEIGHBOR_IP: "10.0.0.1"
IF_NAME: "Ethernet1/1"
ENABLE_LOG_NEIGHBOR_CHANGE: true
groups:
- name: isn
policies:
- name: ebgp_neighbor
switches:
- name: site1-isn1
groups:
- isn
Like previous fabrics, Site1 ISN will leverage the same ND group and ND instance, but specify the Site1 ISN fabric as a logical host.
touch ~/workspace/ndlab/nac/hosts.site1_isn.yml
cat << EOF >> ~/workspace/ndlab/nac/hosts.site1_isn.yml
---
# Inventory Information For Site1 ISN Fabric
nd:
hosts:
site1-isn:
ansible_host: 10.15.0.98
EOF
Make sure you are in your root Ansible directory.
cd ~/workspace/ndlab/nac
From the root Ansible project directory execute the following command:
ansible-playbook -i hosts.site1_isn.yml vxlan.yml
Upon a successful run of the playbook your output should look as follows:
<... SNIP ...> PLAY RECAP ************************************************************************************************************************************************************************** site1-isn : ok=199 changed=28 unreachable=0 failed=0 skipped=1373 rescued=0 ignored=0 PLAYBOOK RECAP ********************************************************************************************************************************************************************** Playbook run took 0 days, 0 hours, 3 minutes, 7 seconds TASKS RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 13:37:29 +0000 (0:00:00.064) 0:03:07.942 ******* =============================================================================== cisco.nac_dc_vxlan.create : Add Fabric Devices in Nexus Dashboard ----------------------------------------------------------------------------------------------------------- 40.84s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for ISN Fabric in Nexus Dashboard -------------------------------------------------------------------------------------- 27.87s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for ISN Fabric in Nexus Dashboard --------------------------------------------------------------------------------------- 5.72s cisco.nac_dc_vxlan.create : Manage Fabric in Nexus Dashboard ----------------------------------------------------------------------------------------------------------------- 4.17s cisco.nac_dc_vxlan.common : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.15s cisco.nac_dc_vxlan.common : Get POAP Data From POAP Enabled Devices ---------------------------------------------------------------------------------------------------------- 1.86s cisco.nac_dc_vxlan.create : Manage Interface All in Nexus Dashboard ---------------------------------------------------------------------------------------------------------- 1.73s cisco.nac_dc_vxlan.connectivity_check : Get Cisco Nexus Dashboard Fabric Controller Version ---------------------------------------------------------------------------------- 1.71s cisco.nac_dc_vxlan.create : Manage Fabric Policies in Nexus Dashboard -------------------------------------------------------------------------------------------------------- 1.64s cisco.nac_dc_vxlan.remove : Get List of ISN Fabric Switches from Nexus Dashboard --------------------------------------------------------------------------------------------- 1.23s cisco.nac_dc_vxlan.create : Build Switch Hostname Policy Payload from Data Model Update -------------------------------------------------------------------------------------- 1.16s cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host ---------------------------------------------------------------------------------------------------------------- 0.96s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.89s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.89s cisco.nac_dc_vxlan.common : Build Policy List From Template ------------------------------------------------------------------------------------------------------------------ 0.85s cisco.nac_dc_vxlan.common : Build vPC interface ------------------------------------------------------------------------------------------------------------------------------ 0.81s cisco.nac_dc_vxlan.connectivity_check : Verify Authorization to Nexus Dashboard ---------------------------------------------------------------------------------------------- 0.77s cisco.nac_dc_vxlan.common : Build Interface ---------------------------------------------------------------------------------------------------------------------------------- 0.76s cisco.nac_dc_vxlan.common : Build Fabric Switch Inventory List From Template ------------------------------------------------------------------------------------------------- 0.76s cisco.nac_dc_vxlan.common : Build Fabric Creation Parameters From Template --------------------------------------------------------------------------------------------------- 0.75s ROLES RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 13:37:29 +0000 (0:00:00.067) 0:03:07.944 ******* =============================================================================== create ----------------------------------------------------------------- 62.91s common ----------------------------------------------------------------- 59.42s deploy ----------------------------------------------------------------- 35.13s remove ----------------------------------------------------------------- 15.20s validate ---------------------------------------------------------------- 5.45s connectivity_check ------------------------------------------------------ 3.96s common_global ----------------------------------------------------------- 0.04s ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ total ----------------------------------------------------------------- 182.11s

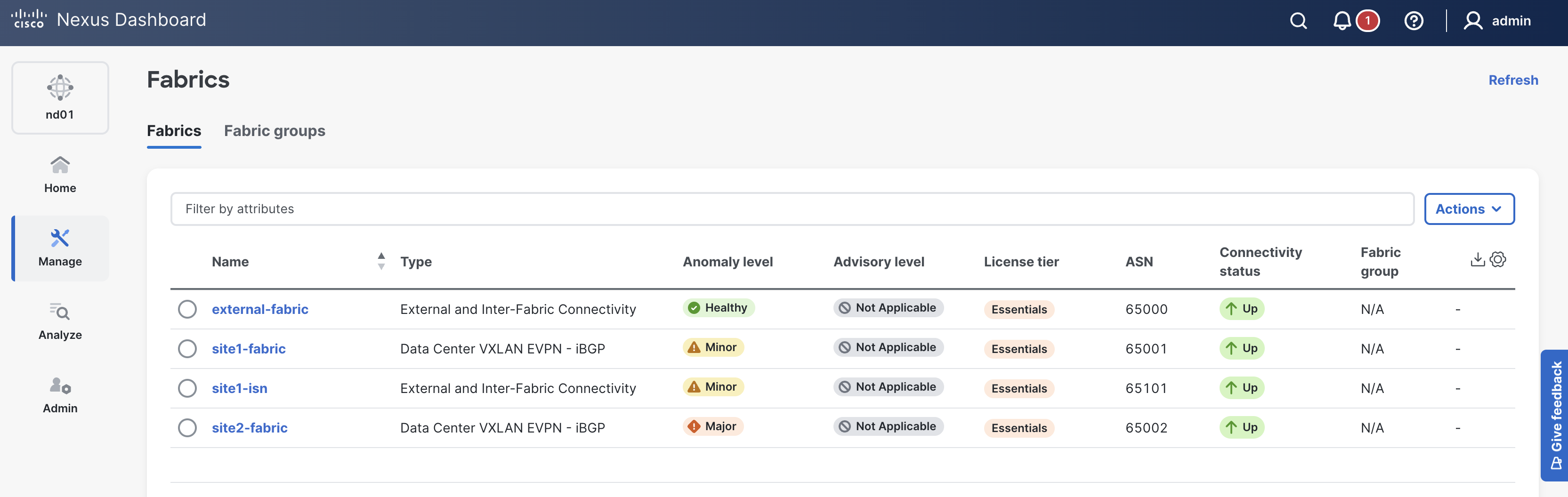

site1-isn in the list of fabrics; click it.
If your site1-isn is not showing, please try clicking the Refresh button in the top-right of the Fabrics pane.

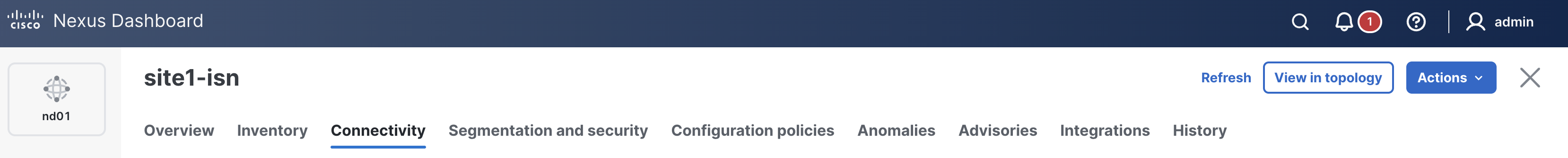

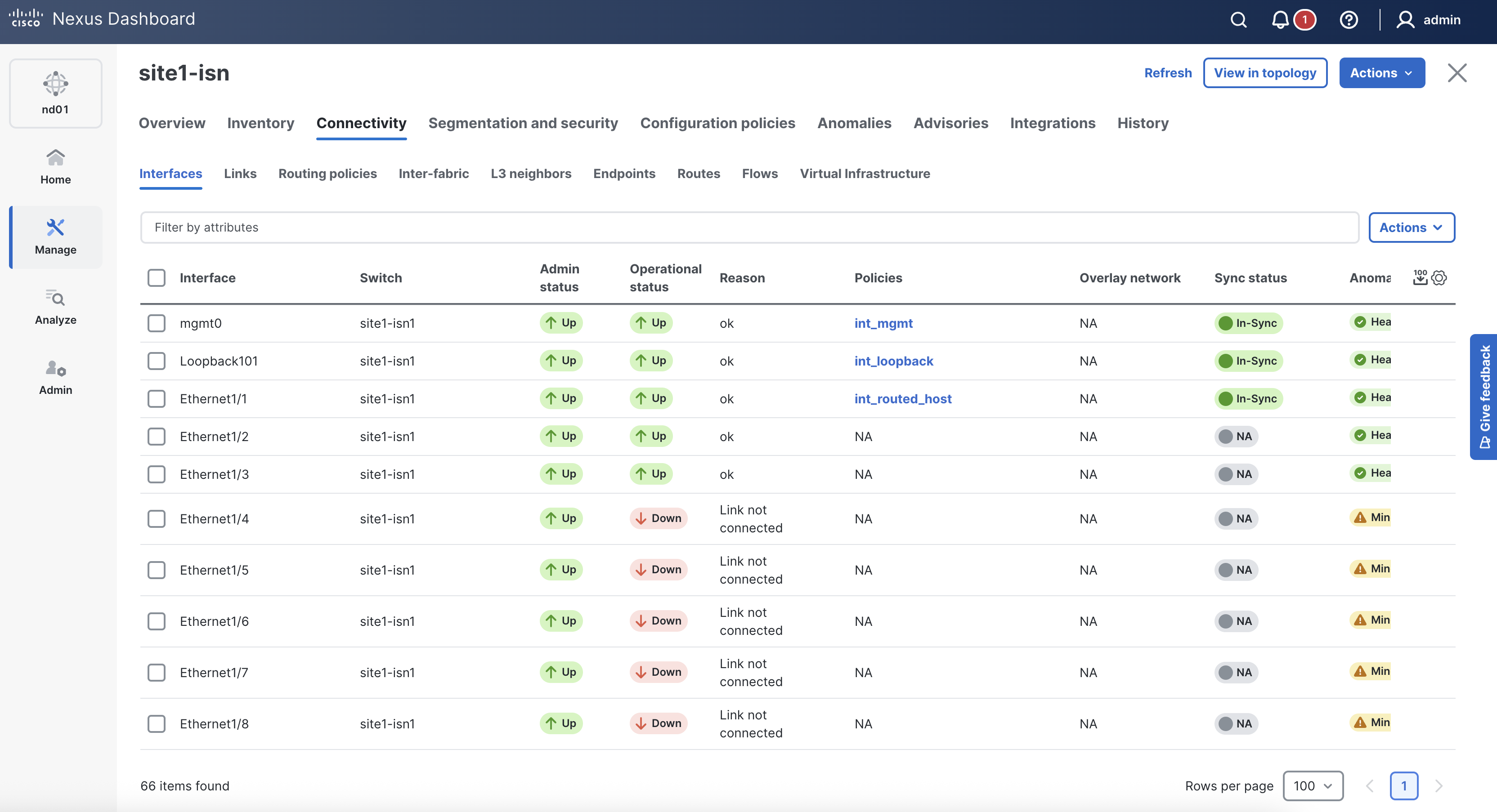

In-Sync. If not, please click the refresh button to the right of the Actions button
Navigate back to your VSCode application.
Please continue to the next section to model and setup your Site2 ISN fabric.
