Return to your Visual Studio Code Terminal window. Create the host_vars directory for your Site2 fabric.
mkdir -p host_vars/site2-fabric
For your site2-fabric fabric, create a file named fabric.nac.yml in the host_vars/site2-fabric directory.
Since this VXLAN fabric is a small representation in this lab, all of your data model definition of the fabric can be contained to a single file.
Similar data is used for the fabric, global and underlay sections of the model for this new fabric as was used for the Site1 fabric, but with different values.
Switches are included in the topology section of the model, along with interface definitions. The two types of switches in this fabric are a border gateway spine and a leaf switch.
touch ~/workspace/ndlab/nac/host_vars/site2-fabric/fabric.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/site2-fabric/fabric.nac.yml
---
vxlan:
fabric:
name: site2-fabric
type: VXLAN_EVPN
global:
ibgp:
bgp_asn: "65002"
route_reflectors: 2
anycast_gateway_mac: 1234.5678.9000
dns_servers:
- ip_address: 10.0.249.16
vrf: management
ntp_servers:
- ip_address: 10.81.254.131
vrf: management
underlay:
general:
routing_protocol: ospf
underlay_routing_loopback_id: 0
underlay_routing_protocol_tag: UNDERLAY
underlay_vtep_loopback_id: 1
replication_mode: multicast
ipv4:
fabric_interface_numbering: p2p
subnet_mask: 31
underlay_routing_loopback_ip_range: 10.22.0.0/22
underlay_vtep_loopback_ip_range: 10.222.100.0/22
underlay_rp_loopback_ip_range: 10.252.252.0/24
underlay_subnet_ip_range: 10.2.0.0/16
ospf:
area_id: 0.0.0.0
multicast:
underlay_rp_loopback_id: 252
rp_mode: asm
topology:
switches:
- name: site2-bgw-s1
serial_number: 90K2M0X2ZB9
role: border_gateway_spine
management:
management_ipv4_address: 10.15.30.21
default_gateway_v4: 10.15.30.1
- name: site2-l1
serial_number: 9B04S5PHXXO
role: leaf
management:
management_ipv4_address: 10.15.30.22
default_gateway_v4: 10.15.30.1
interfaces:
- name: Ethernet1/4
description: To Server4 E1
mode: access
enabled: true
mtu: jumbo
speed: auto
spanning_tree_portfast: true
- name: Ethernet1/5
description: To Server5 E1
mode: access
enabled: true
mtu: jumbo
speed: auto
spanning_tree_portfast: true
The Site2 inventory will leverage the same ND group and ND instance as the Site1 and External fabrics, but specify the Site2 fabric as a logical host.
touch ~/workspace/ndlab/nac/hosts.site2.yml
cat << EOF > ~/workspace/ndlab/nac/hosts.site2.yml
---
# Inventory Information For Site2 Fabric
nd:
hosts:
site2-fabric:
ansible_host: 10.15.0.98
EOF
Make sure you are in your root Ansible directory.
cd ~/workspace/ndlab/nac
From the root Ansible project directory execute the following command:
ansible-playbook -i hosts.site2.yml vxlan.yml
Upon a successful run of the playbook your output should look as follows:
<... SNIP ...> PLAY RECAP ************************************************************************************************************************************************************************** site2-fabric : ok=260 changed=35 unreachable=0 failed=0 skipped=1312 rescued=0 ignored=0 PLAYBOOK RECAP ********************************************************************************************************************************************************************** Playbook run took 0 days, 0 hours, 8 minutes, 19 seconds TASKS RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 13:06:27 +0000 (0:00:00.072) 0:08:19.226 ******* =============================================================================== cisco.nac_dc_vxlan.create : Add Fabric Devices in Nexus Dashboard ---------------------------------------------------------------------------------------------------------- 199.83s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for iBGP VXLAN Fabric in Nexus Dashboard ------------------------------------------------------------------------------ 128.61s cisco.nac_dc_vxlan.create : Config-Save for iBGP VXLAN Fabric in Nexus Dashboard -------------------------------------------------------------------------------------------- 17.23s cisco.nac_dc_vxlan.create : Manage Fabric in Nexus Dashboard ---------------------------------------------------------------------------------------------------------------- 12.15s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for iBGP VXLAN Fabric in Nexus Dashboard ------------------------------------------------------------------------------- 11.57s cisco.nac_dc_vxlan.create : Manage Interface All in Nexus Dashboard ---------------------------------------------------------------------------------------------------------- 3.01s cisco.nac_dc_vxlan.common : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.17s cisco.nac_dc_vxlan.create : Build Switch Hostname Policy Payload from Data Model Update -------------------------------------------------------------------------------------- 1.89s cisco.nac_dc_vxlan.common : Get POAP Data From POAP Enabled Devices ---------------------------------------------------------------------------------------------------------- 1.88s cisco.nac_dc_vxlan.connectivity_check : Get Cisco Nexus Dashboard Fabric Controller Version ---------------------------------------------------------------------------------- 1.77s cisco.nac_dc_vxlan.common : Get Multisite Fabric Associations in Nexus Dashboard --------------------------------------------------------------------------------------------- 1.40s cisco.nac_dc_vxlan.remove : Get List of iBGP VXLAN Fabric Switches from Nexus Dashboard -------------------------------------------------------------------------------------- 1.25s cisco.nac_dc_vxlan.common : Build Fabric Creation Parameters From Template --------------------------------------------------------------------------------------------------- 0.99s cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host ---------------------------------------------------------------------------------------------------------------- 0.91s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.89s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.88s cisco.nac_dc_vxlan.connectivity_check : Verify Authorization to Nexus Dashboard ---------------------------------------------------------------------------------------------- 0.80s cisco.nac_dc_vxlan.common : Build Fabric Switch Inventory List From Template ------------------------------------------------------------------------------------------------- 0.79s cisco.nac_dc_vxlan.common : Build Policy List From Template ------------------------------------------------------------------------------------------------------------------ 0.78s cisco.nac_dc_vxlan.common : Build vPC interface ------------------------------------------------------------------------------------------------------------------------------ 0.76s ROLES RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 13:06:27 +0000 (0:00:00.077) 0:08:19.230 ******* =============================================================================== create ---------------------------------------------------------------- 252.45s deploy ---------------------------------------------------------------- 141.75s common ----------------------------------------------------------------- 72.07s remove ----------------------------------------------------------------- 17.75s validate ---------------------------------------------------------------- 5.29s connectivity_check ------------------------------------------------------ 3.99s common_global ----------------------------------------------------------- 0.05s ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ total ----------------------------------------------------------------- 493.35s

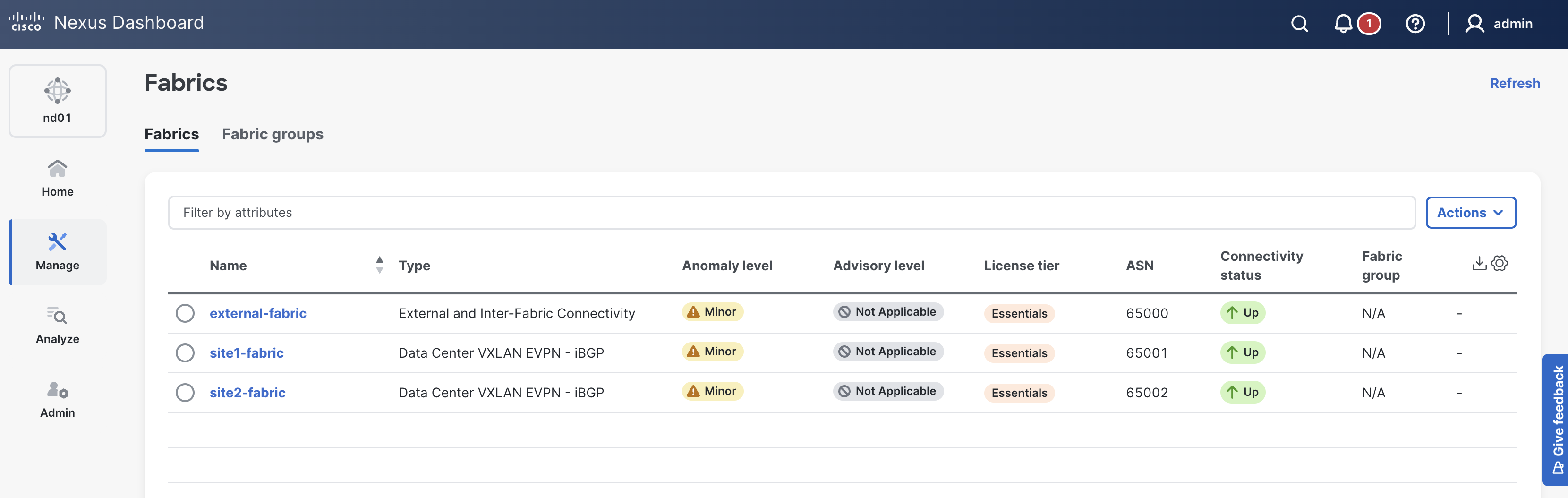

site2-fabric in the list of fabrics; click it.
If your site2-fabric is not showing, please try clicking the Refresh button in the top-right of the Fabrics pane.

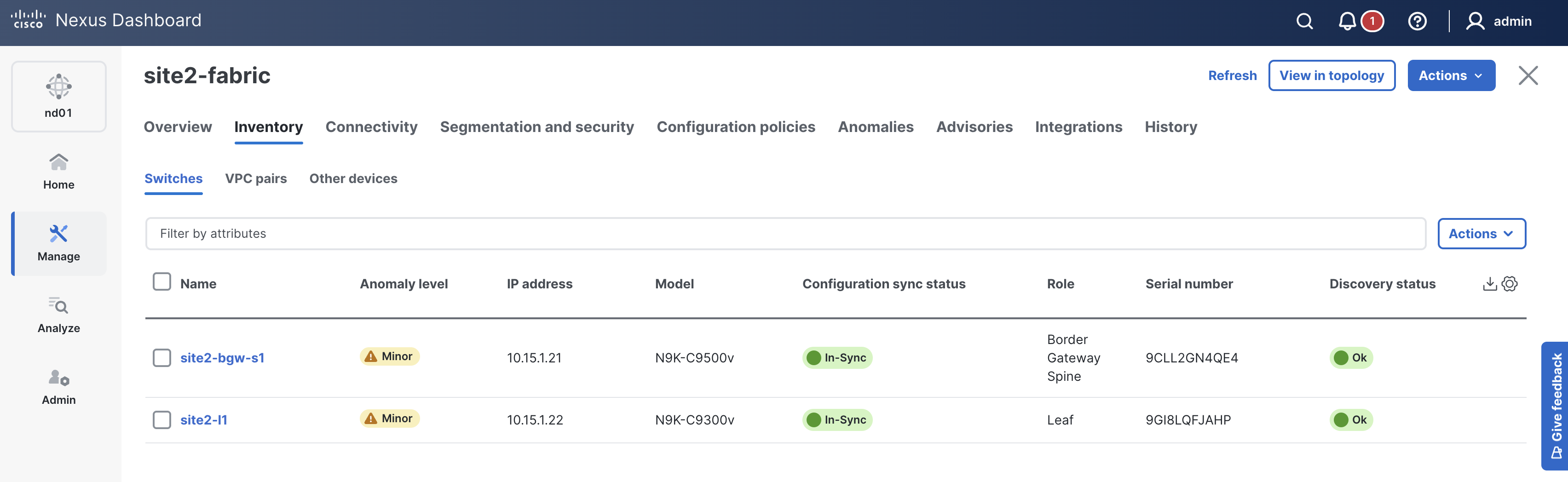

In-Sync. If not, please click the Refresh button near the Actions button

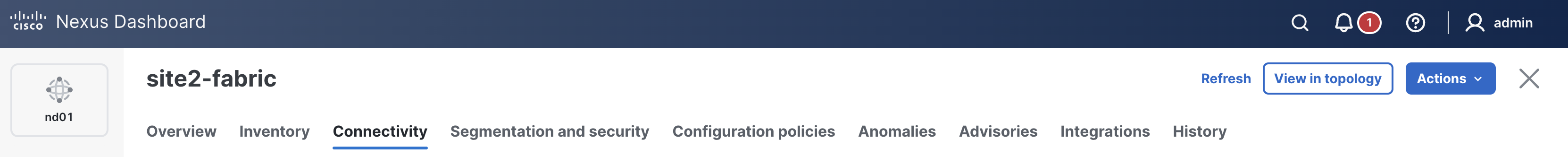

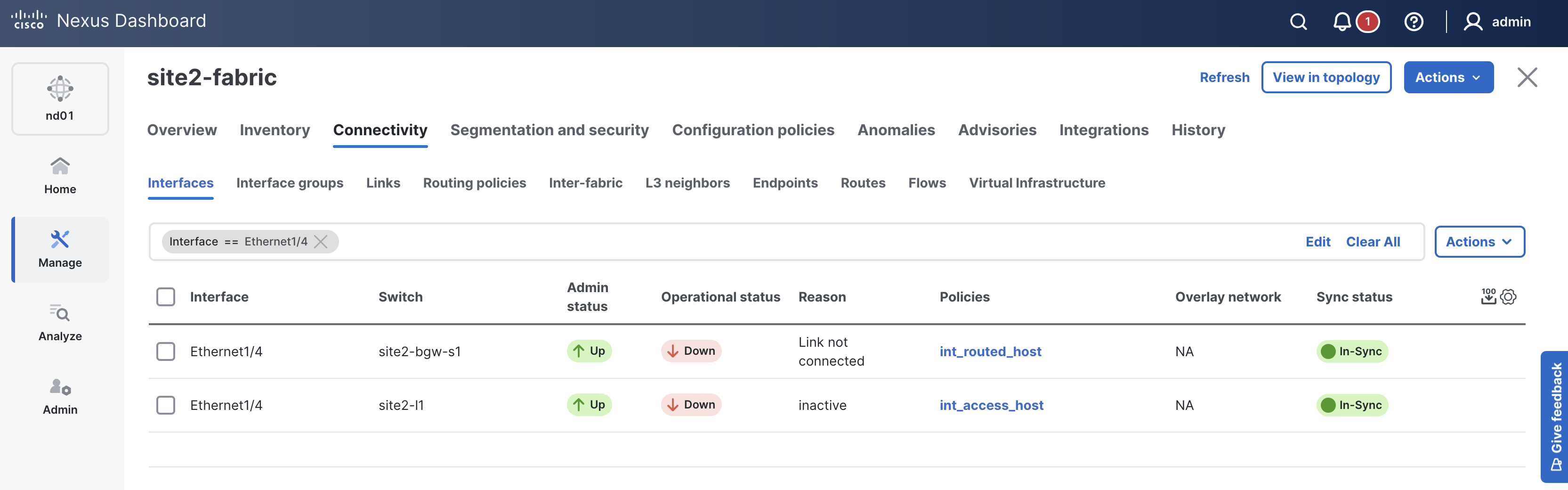

Navigate back to your VSCode application.
Please continue to the next section to create your Site1 ISN fabric, onboard an ISN switch, and configure the necessary policies to establish BGP peering between sites.
