To configure VRF-Lite in your Site1 fabric, update your vrfs.nac.yml file to include the border leaf switch in the VRF attach group.
touch ~/workspace/ndlab/nac/host_vars/site1-fabric/vrfs.nac.yml
cat << EOF > ~/workspace/ndlab/nac/host_vars/site1-fabric/vrfs.nac.yml
---
vxlan:
overlay:
vrfs:
- name: NaC-VRF01
vrf_id: 200001
vlan_id: 2001
vrf_attach_group: all
vrf_attach_groups:
- name: all
switches:
- hostname: site1-l1
- hostname: site1-l2
- hostname: site1-bl1
EOF
Next, you will create a file named vrf_lite.nac.yml that contains the data for VRF-Lite to establish the
BGP peering with the external router as well as define a default static route towards the external router.
touch ~/workspace/ndlab/nac/host_vars/site1-fabric/vrf_lite.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/site1-fabric/vrf_lite.nac.yml
---
vxlan:
overlay_extensions:
vrf_lites:
- name: NaC-VRF-Lite01
vrf: NaC-VRF01
switches:
- name: site1-bl1
router_id: 10.31.0.1
bgp_peers:
- address: 10.31.0.2
remote_as: 65000
description: Peer to site1-extrtr1 in external-fabric
address_family_ipv4_unicast:
send_community: true
send_ext_community: true
route_map_out: extcon-rmap-filter
static_routes:
static_ipv4:
- prefix: 0.0.0.0/0
next_hops:
- ip: 10.31.0.2
policy:
policies:
- name: BGP Network Statement Policy
template_name: bgp_vrf_network
template_vars:
BGP_AS: 65001
VRF_NAME: NaC-VRF01
IP_PREFIX: 0.0.0.0/0
groups:
- name: Border Leaf
policies:
- name: BGP Network Statement Policy
switches:
- name: site1-bl1
groups:
- Border Leaf
Make sure you are in your root Ansible directory.
cd ~/workspace/ndlab/nac
From the root Ansible project directory execute the following command:
ansible-playbook -i hosts.site1.yml vxlan.yml --tags cr_manage_switches,cr_manage_vrfs_networks,cr_manage_policy,role_deploy

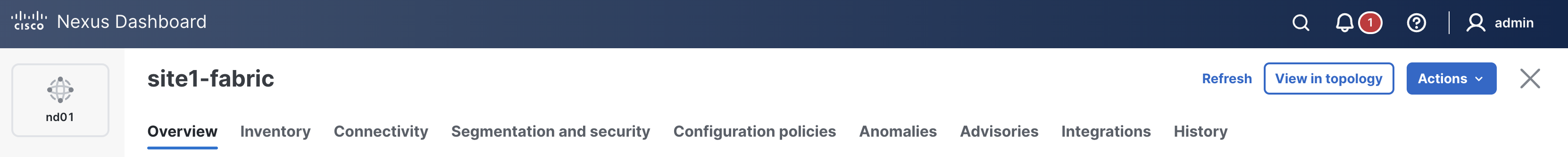

In your ND browser, navigate to the switches view.
Here you will start to see the spine and leaf devices being discovered and added to the site1-fabric fabric.
This might be a good time for another cup of coffee or tea while the switch POAPs into your Site1 fabric!
This part of the data model for POAP is doing the following:

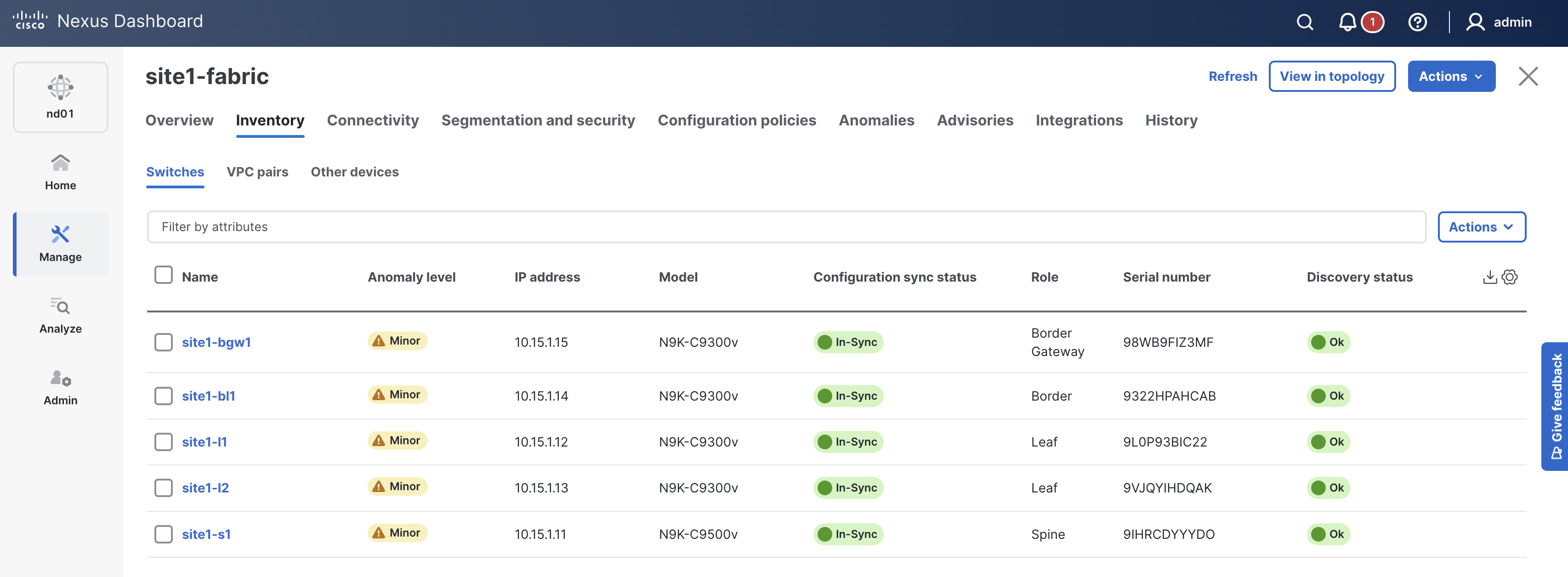

Check ND again and make sure the switch is added. The Mode should show as Normal and the Discovery Status should show as Ok.
Upon a successful run of the playbook your output should look as follows:
<... SNIP ...> PLAY RECAP ************************************************************************************************************************************************************************** site1-fabric : ok=250 changed=35 unreachable=0 failed=0 skipped=881 rescued=0 ignored=0 PLAYBOOK RECAP ********************************************************************************************************************************************************************** Playbook run took 0 days, 0 hours, 15 minutes, 4 seconds TASKS RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 04:21:10 +0000 (0:00:00.094) 0:15:04.478 ******* =============================================================================== cisco.nac_dc_vxlan.create : Add Fabric Devices in Nexus Dashboard ---------------------------------------------------------------------------------------------------------- 673.58s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for iBGP VXLAN Fabric in Nexus Dashboard ------------------------------------------------------------------------------- 96.12s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for iBGP VXLAN Fabric in Nexus Dashboard ------------------------------------------------------------------------------- 15.91s cisco.nac_dc_vxlan.create : Manage Fabric VRFs in Nexus Dashboard ------------------------------------------------------------------------------------------------------------ 4.50s cisco.nac_dc_vxlan.create : Manage Fabric Networks in Nexus Dashboard -------------------------------------------------------------------------------------------------------- 3.89s cisco.nac_dc_vxlan.create : Build Switch Hostname Policy Payload from Data Model Update -------------------------------------------------------------------------------------- 3.14s cisco.nac_dc_vxlan.common : Get POAP Data From POAP Enabled Devices ---------------------------------------------------------------------------------------------------------- 2.18s cisco.nac_dc_vxlan.common : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.15s cisco.nac_dc_vxlan.create : Manage Fabric Policies in Nexus Dashboard -------------------------------------------------------------------------------------------------------- 1.83s cisco.nac_dc_vxlan.connectivity_check : Get Cisco Nexus Dashboard Fabric Controller Version ---------------------------------------------------------------------------------- 1.68s cisco.nac_dc_vxlan.create : Attach Loopbacks to VRFs in Nexus Dashboard ------------------------------------------------------------------------------------------------------ 1.42s cisco.nac_dc_vxlan.common : Get Multisite Fabric Associations in Nexus Dashboard --------------------------------------------------------------------------------------------- 1.22s cisco.nac_dc_vxlan.common : Build Fabric Creation Parameters From Template --------------------------------------------------------------------------------------------------- 1.05s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.93s cisco.nac_dc_vxlan.common : Build VRFs Attach List From Template ------------------------------------------------------------------------------------------------------------- 0.92s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.90s cisco.nac_dc_vxlan.common : Build Networks Attach List From Template --------------------------------------------------------------------------------------------------------- 0.85s cisco.nac_dc_vxlan.common : Build VRFs Attach List From Template for loopback ------------------------------------------------------------------------------------------------ 0.82s cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host ---------------------------------------------------------------------------------------------------------------- 0.80s cisco.nac_dc_vxlan.common : Build Interface ---------------------------------------------------------------------------------------------------------------------------------- 0.78s ROLES RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 04:21:10 +0000 (0:00:00.097) 0:15:04.480 ******* =============================================================================== create ---------------------------------------------------------------- 697.70s deploy ---------------------------------------------------------------- 113.73s common ----------------------------------------------------------------- 76.20s validate ---------------------------------------------------------------- 7.05s connectivity_check ------------------------------------------------------ 3.89s common_global ----------------------------------------------------------- 0.05s ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ total ----------------------------------------------------------------- 898.63s
Return to your ND browser where you should be sitting on the Switches tab.

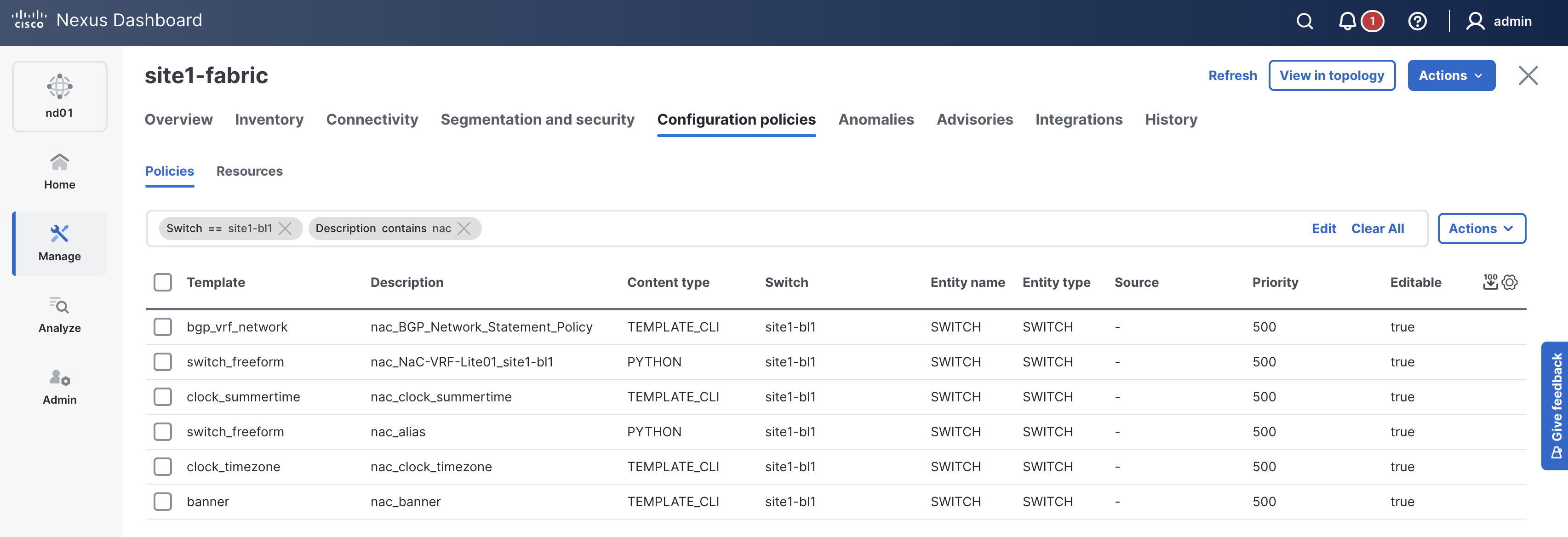

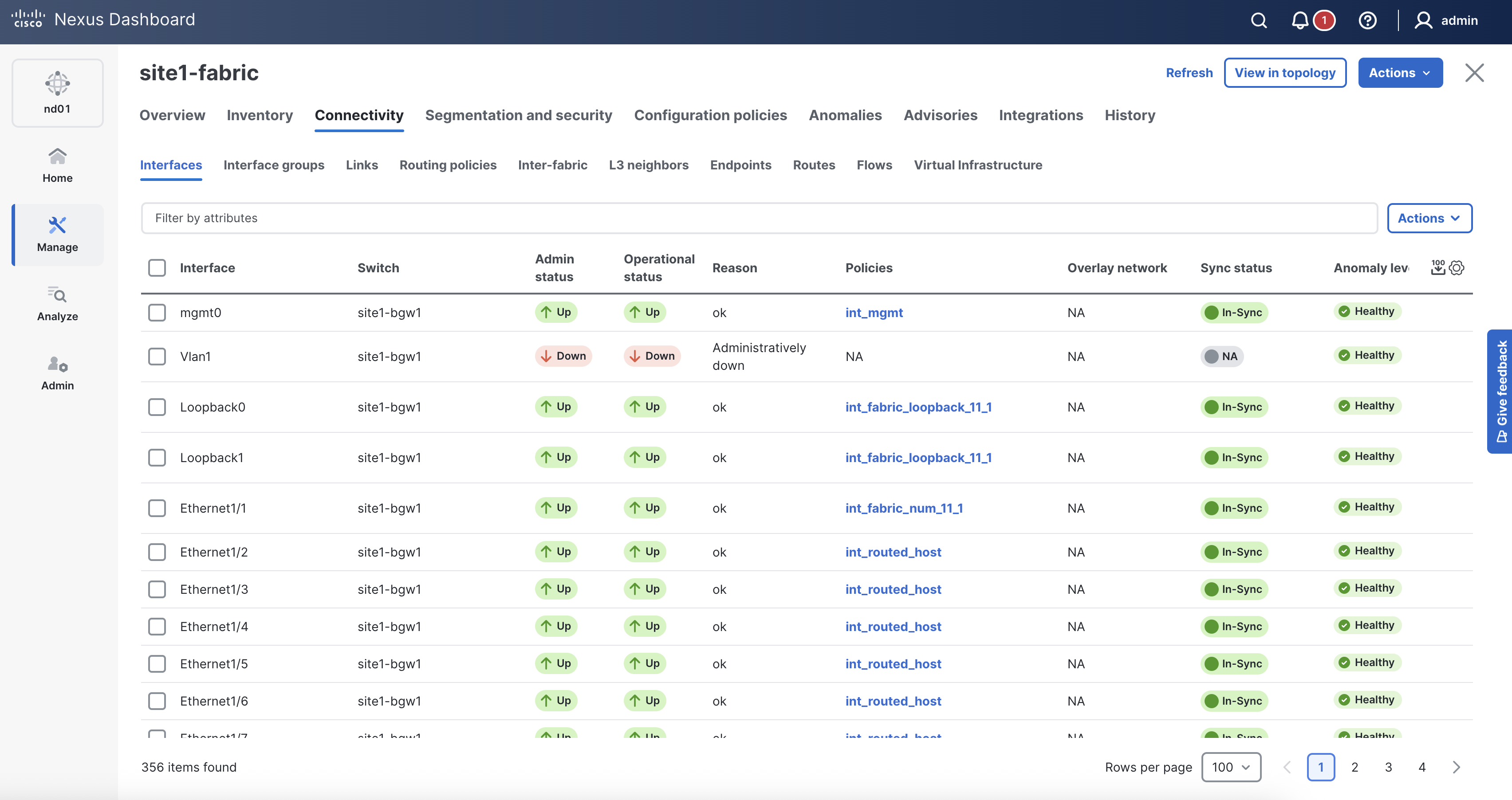

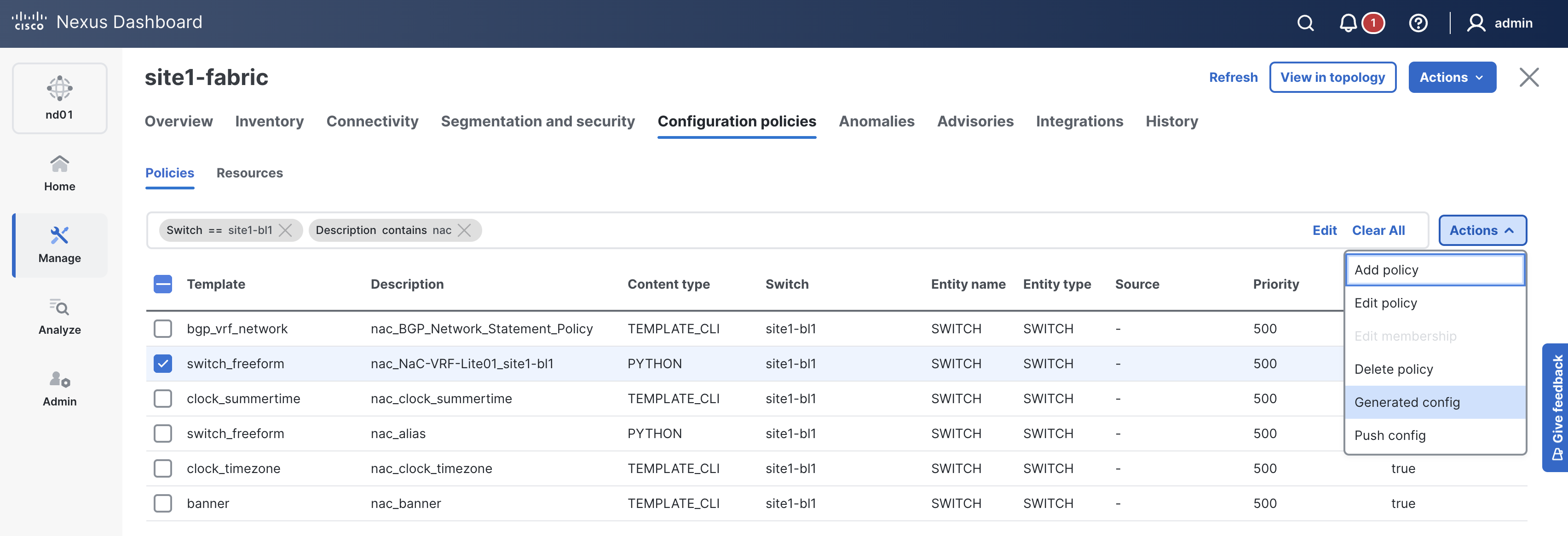

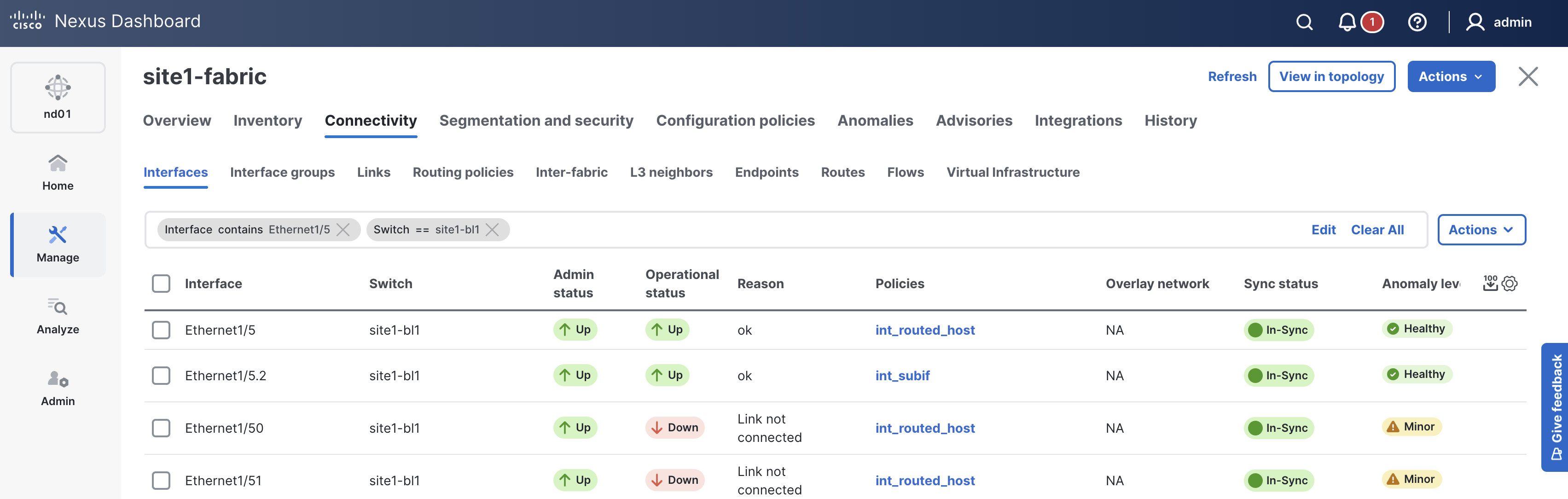

When reviewing the Interfaces tab, it is expected to see the interfaces for site1-bl1 now.

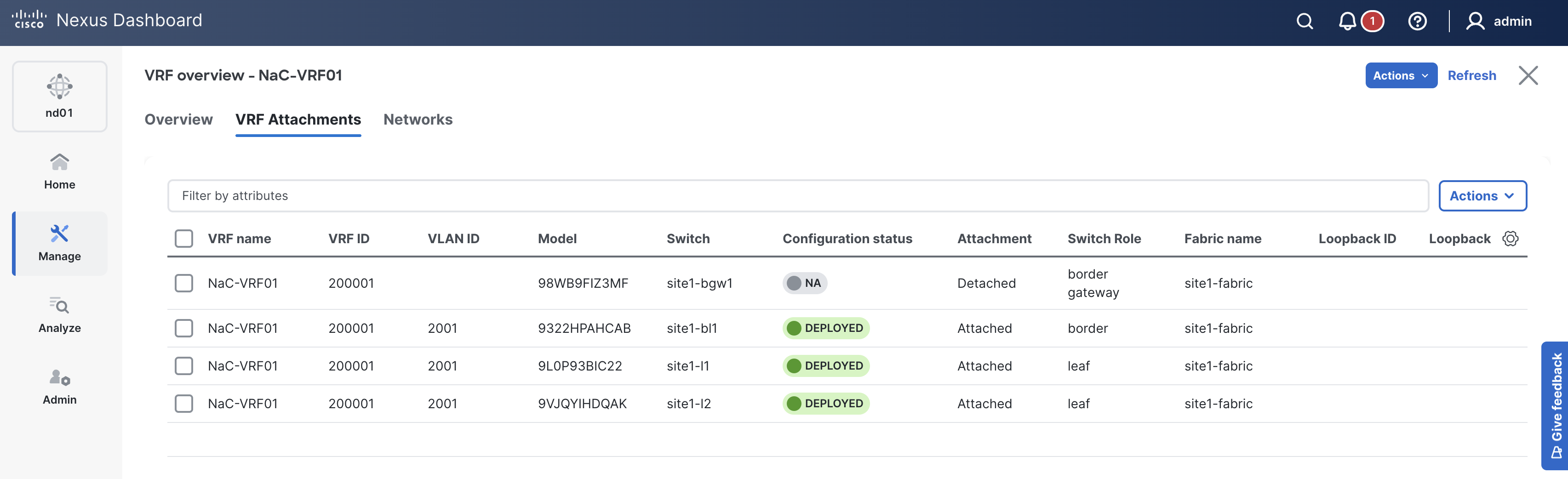

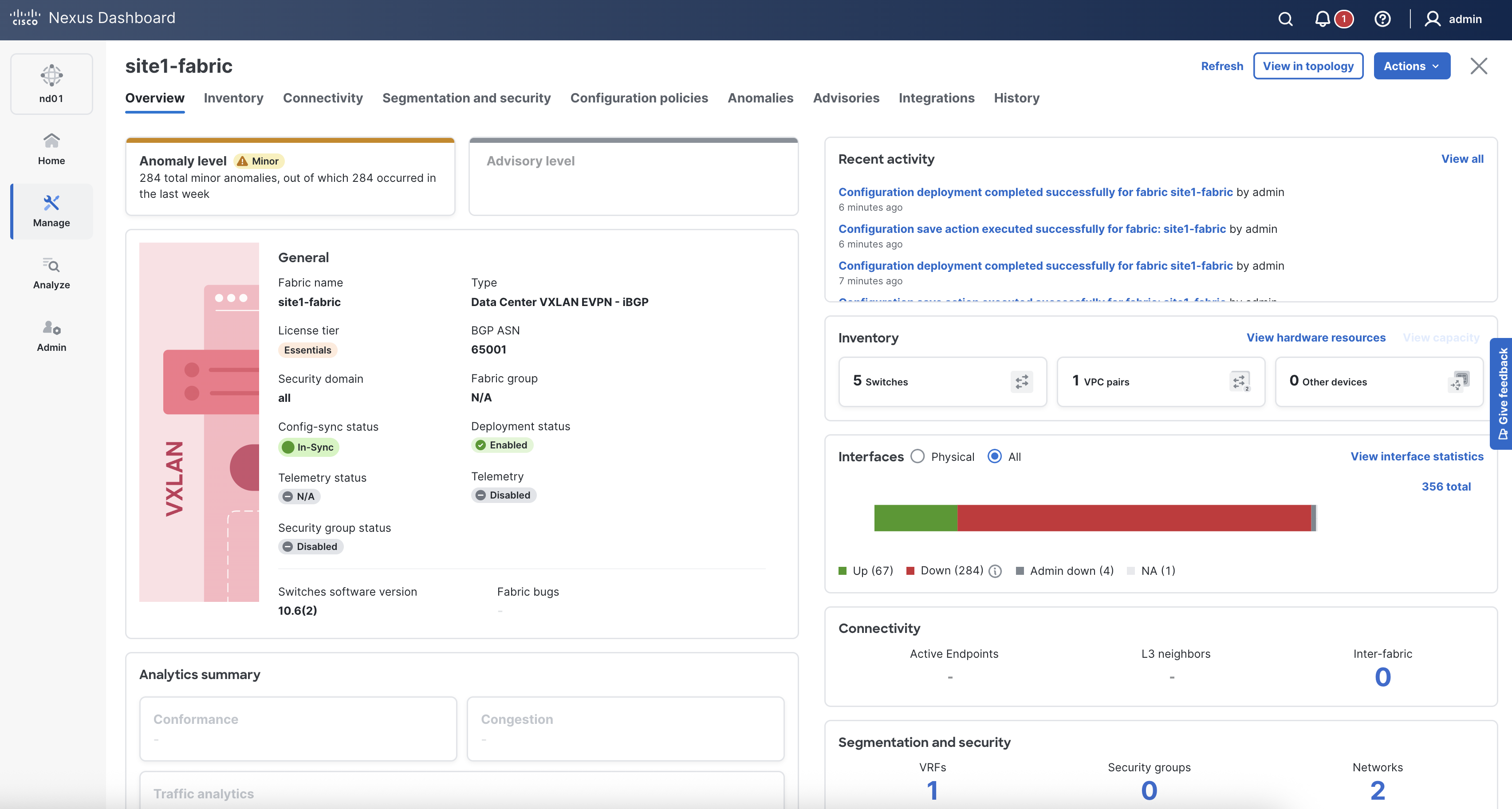

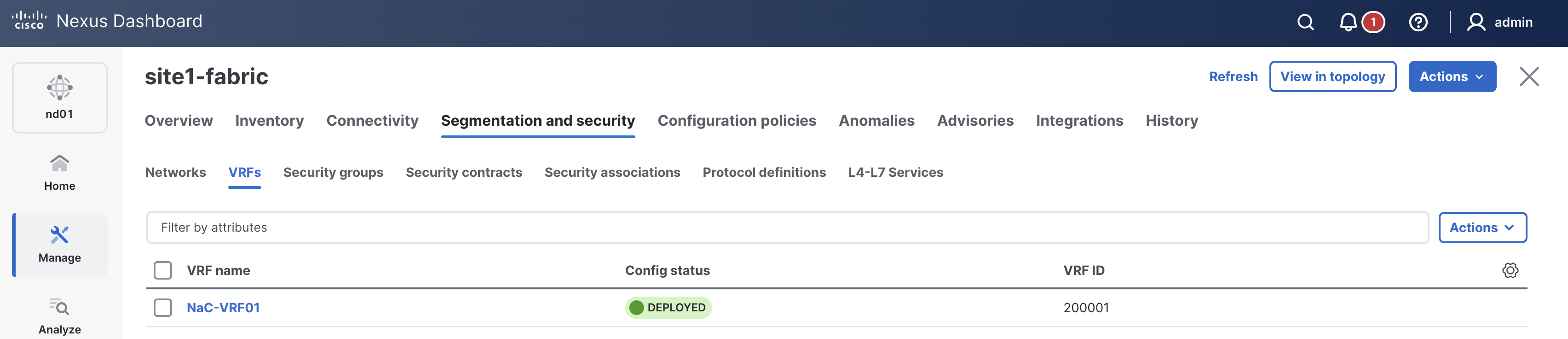

You've previously already verified the deployment. You just need to verify the deployment to your new switch.
enter
Navigate back to your VSCode application.
As a reminder, the Ansible inventory file defines how Ansible will connect and authenticate with ND in conjunction with the group_vars and host_vars files you have been creating. This inventory file will specifically define the external fabric logically as a host that you will be adding and managing in ND.
touch ~/workspace/ndlab/nac/hosts.external.yml
cat << EOF > ~/workspace/ndlab/nac/hosts.external.yml
---
# Inventory Information For Site1 External Fabric
nd:
hosts:
external-fabric:
ansible_host: 10.15.0.98
EOF
After creating the external fabric inventory file, you need to create the necessary host_vars directory for your data model file(s).
Create a directory named host_vars/external-fabric.
cd ~/workspace/ndlab/nac
mkdir -p host_vars/external-fabric
In the previous sections, you created several YAML files that defined the fabric, global configuration, underlay configuration, topology and
overlay configurations for the site1-fabric fabric by showing you can split out the data model into separate files.
In this section, you are going to create a single YAML file for simplicity that will define the external fabric, which is a separate fabric that connects to the
site1-fabric fabric.
This external fabric will be used to connect an external router, which is represented by the site1-extrtr1 device in the diagram to the right.
The external router will be connected to the site1-bl1 switch in the site1-fabric via a routed interface and a sub-interface.
The end goal is to establish a connection between the site1-fabric and the external router in the external-fabric,
allowing for connectivity in and out of the Site1 fabric. Once both fabrics are established and have VRF-Lite configured between them,
you should be able to send a successful ping from a server located behind leaf1 to the external router's loopback interface.
touch ~/workspace/ndlab/nac/host_vars/external-fabric/fabric.nac.yml
code-server -r ~/workspace/ndlab/nac/host_vars/external-fabric/fabric.nac.yml
---
vxlan:
fabric:
name: external-fabric
type: External
global:
external:
bgp_asn: "65000"
topology:
switches:
- name: site1-extrtr1
serial_number: 9WWB1CHSODR
role: edge_router
management:
management_ipv4_address: 10.15.30.16
default_gateway_v4: 10.15.30.1
interfaces:
- name: Ethernet1/1
mode: routed
description: To Border Leaf Eth1/5
enabled: true
- name: Ethernet1/1.2
mode: routed_sub
description: To Border Leaf Eth1/5.2
enabled: true
dot1q_id: 2
ipv4_address: 10.31.0.2/30
- name: loopback0
mode: loopback
description: Ping Test Loopback
enabled: true
ipv4_address: 172.16.1.1
policy:
policies:
- name: BGP Neighbor Policy
template_name: External_VRF_Lite_eBGP
template_vars:
asn: 65000
vrfName: default
NEIGHBOR_IP: 10.31.0.1
NEIGHBOR_ASN: 65001
- name: BGP Network Statement Policy
template_name: bgp_network
template_vars:
BGP_AS: 65000
IP_MASK: 172.16.1.1/32
groups:
- name: External Router
policies:
- name: BGP Neighbor Policy
- name: BGP Network Statement Policy
switches:
- name: site1-extrtr1
groups:
- External Router
Make sure you are in your root Ansible directory.
cd ~/workspace/ndlab/nac
From the root Ansible project directory execute the following command:
ansible-playbook -i hosts.external.yml vxlan.yml
Upon a successful run of the playbook your output should look as follows:
<... SNIP ...> PLAY RECAP ************************************************************************************************************************************************************************** external-fabric : ok=211 changed=28 unreachable=0 failed=0 skipped=1366 rescued=0 ignored=0 PLAYBOOK RECAP ********************************************************************************************************************************************************************** Playbook run took 0 days, 0 hours, 3 minutes, 12 seconds TASKS RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 04:33:42 +0000 (0:00:00.058) 0:03:12.431 ******* =============================================================================== cisco.nac_dc_vxlan.create : Add Fabric Devices in Nexus Dashboard ----------------------------------------------------------------------------------------------------------- 41.98s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for External Fabric in Nexus Dashboard --------------------------------------------------------------------------------- 29.00s cisco.nac_dc_vxlan.deploy : Manage Fabric Deployment for External Fabric in Nexus Dashboard ---------------------------------------------------------------------------------- 5.92s cisco.nac_dc_vxlan.create : Manage Fabric in Nexus Dashboard (POST) ---------------------------------------------------------------------------------------------------------- 2.56s cisco.nac_dc_vxlan.create : Manage Interface All in Nexus Dashboard ---------------------------------------------------------------------------------------------------------- 2.25s cisco.nac_dc_vxlan.common : Display Flag Values ------------------------------------------------------------------------------------------------------------------------------ 2.14s cisco.nac_dc_vxlan.common : Get POAP Data From POAP Enabled Devices ---------------------------------------------------------------------------------------------------------- 1.83s cisco.nac_dc_vxlan.connectivity_check : Get Cisco Nexus Dashboard Fabric Controller Version ---------------------------------------------------------------------------------- 1.74s cisco.nac_dc_vxlan.create : Manage Fabric Policies in Nexus Dashboard -------------------------------------------------------------------------------------------------------- 1.68s cisco.nac_dc_vxlan.create : Build Switch Hostname Policy Payload from Data Model Update -------------------------------------------------------------------------------------- 1.63s cisco.nac_dc_vxlan.remove : Get List of External Fabric Switches from Nexus Dashboard ---------------------------------------------------------------------------------------- 1.23s cisco.nac_dc_vxlan.create : Check Fabric Exists in Nexus Dashboard ----------------------------------------------------------------------------------------------------------- 1.23s cisco.nac_dc_vxlan.validate : Copy Service Model Data to Host ---------------------------------------------------------------------------------------------------------------- 0.96s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.90s cisco.nac_dc_vxlan.common : Retrieve NDFC Device Username and Password from Group Vars and update inv_config ----------------------------------------------------------------- 0.84s cisco.nac_dc_vxlan.connectivity_check : Verify Authorization to Nexus Dashboard ---------------------------------------------------------------------------------------------- 0.83s cisco.nac_dc_vxlan.common : Build vPC interface ------------------------------------------------------------------------------------------------------------------------------ 0.79s cisco.nac_dc_vxlan.common : Build Interface ---------------------------------------------------------------------------------------------------------------------------------- 0.78s cisco.nac_dc_vxlan.common : Build Policy List From Template ------------------------------------------------------------------------------------------------------------------ 0.76s cisco.nac_dc_vxlan.common : Build Interface ---------------------------------------------------------------------------------------------------------------------------------- 0.75s ROLES RECAP ************************************************************************************************************************************************************************* Tuesday 27 January 2026 04:33:42 +0000 (0:00:00.068) 0:03:12.439 ******* =============================================================================== create ----------------------------------------------------------------- 64.58s common ----------------------------------------------------------------- 61.03s deploy ----------------------------------------------------------------- 36.37s remove ----------------------------------------------------------------- 15.28s validate ---------------------------------------------------------------- 5.41s connectivity_check ------------------------------------------------------ 3.98s common_global ----------------------------------------------------------- 0.04s ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ total ----------------------------------------------------------------- 186.69s

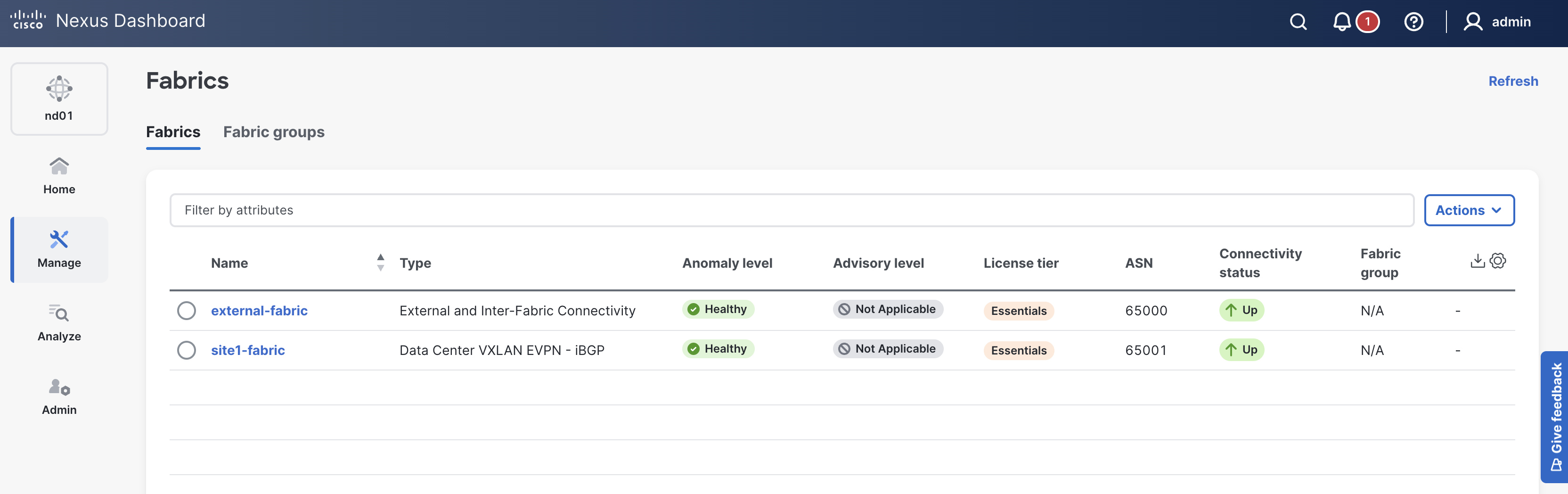

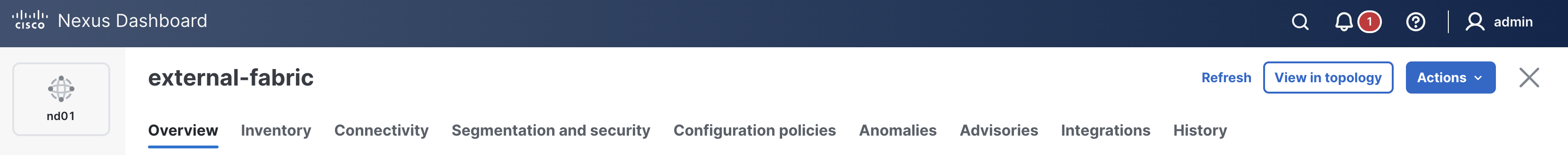

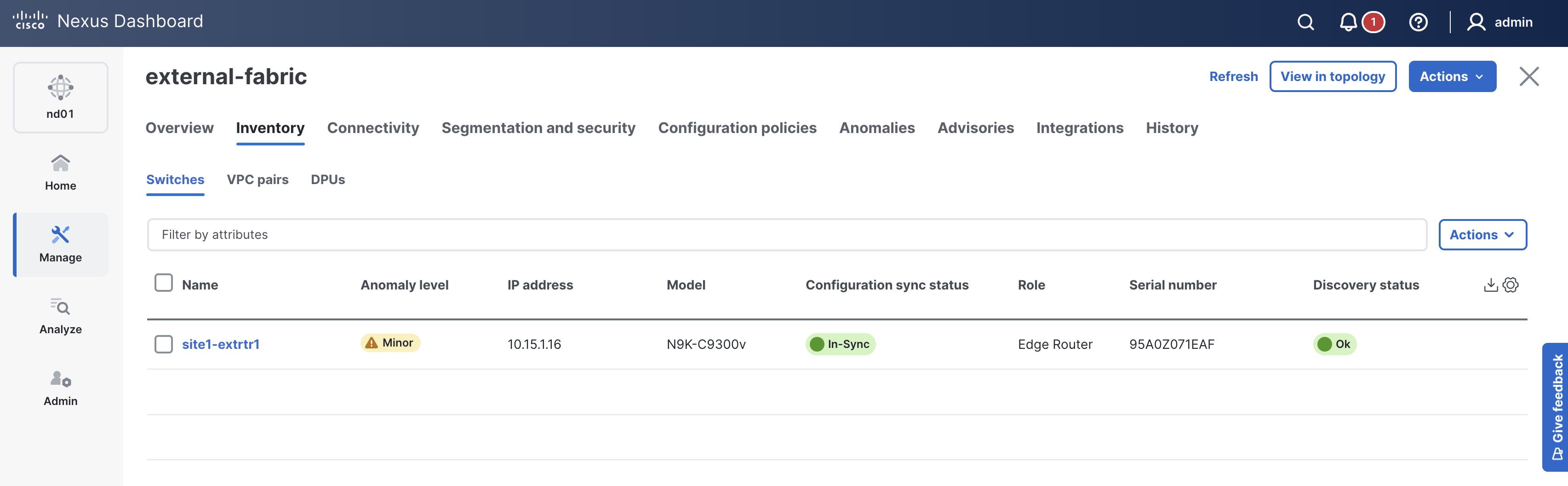

In your browser, return to ND:
Now that you have configured a test loopback interface on router extrtr-extrtr and applied a BGP policy to inject the route you can test connectivity from Server1 to the External Loopback IP
Log in to Server1 by copying the command below and pasting it into your VSCode Terminal. When prompted, the password is cisco.123 .
ssh -l cisco 10.15.30.101
If prompted to accept the RSA key fingerprint like below, type or copy yes then input the password above.
cisco@10.15.30.101's password:
ping -c 5 172.16.1.1
Output:
PING 172.16.1.1 (172.16.1.1): 56 data bytes 64 bytes from 172.16.1.1: seq=0 ttl=253 time=11.631 ms 64 bytes from 172.16.1.1: seq=1 ttl=253 time=10.717 ms 64 bytes from 172.16.1.1: seq=2 ttl=253 time=11.234 ms 64 bytes from 172.16.1.1: seq=3 ttl=253 time=10.291 ms 64 bytes from 172.16.1.1: seq=4 ttl=253 time=11.116 ms --- 172.16.1.1 ping statistics --- 5 packets transmitted, 5 packets received, 0% packet loss round-trip min/avg/max = 10.291/10.997/11.631 ms
exit
Connection to 10.15.30.101 closed.
Navigate back to your VSCode application.
In the next section, you will build a simple Site2 fabric in preparation for extending your network via Multi-Site (MSD).
